Factory-Grade Remanufactured Valeo TM16 AC Compressor – Optimized Core for Light Commercial Vehicles, Mini-Buses & Vans | 12V/24V R134a
- Overview
- Recommended Products
The Engineering Philosophy Behind Reliable Core Restoration
Across the global light-duty commercial transport sector, maintaining consistent cabin comfort without inflating operational overheads is a persistent challenge. Hunan Weili Auto Parts Appliance Co., Ltd. addresses this dilemma directly with our specialized refurbishment ecosystem. Recognized as a National High-Tech Enterprise and a provincial "Specialized and Sophisticated" (S3N) "Little Giant" manufacturer, we approach compressor rebuilding not as a quick fix, but as a precision engineering discipline.

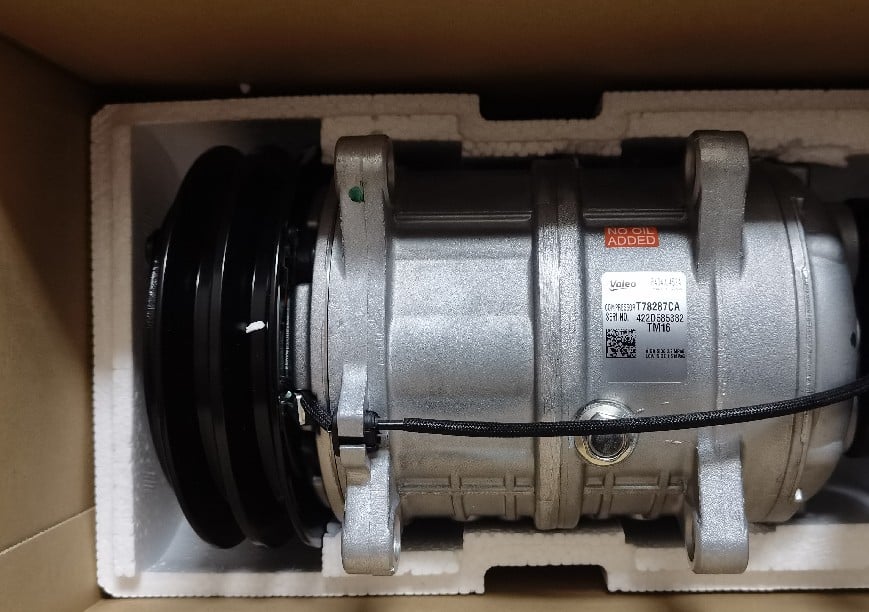

Our Remanufactured Valeo TM16 compressor represents the apex of this disciplined approach. Primarily deployed in mid-sized passenger vehicles, sprinter vans, and mini-coaches, the TM16 is a compact yet highly efficient rotary unit. Our restoration workflow begins with a thorough magnetic particle inspection of the original housing to detect micro-fractures. Following this, we subject the core to a high-pressure, high-temperature chemical bath to eradicate internal sludge and carbon buildup. We then meticulously replace all consumable interface points—including the swash plate, slipper pads, valve plates, and shaft seals—with factory-grade replacement components. The result is a restored compressor that perfectly mimics the thermodynamic efficiency and low-friction operation of a newly manufactured OEM unit, delivering a substantial cost advantage for fleet maintenance managers and auto parts wholesalers worldwide.
Precise Technical Specifications (Valeo TM16 Refurbished)
We offer transparent, data-driven specifications for this widely adopted European-standard compressor, ensuring your engineering teams can select the exact fit for their vehicle fleet.
| Model | TM16 |
| Technology | Heavy Duty Swash Plate |
| Displacement | 163 cm³ /rev |
| Number of cylinders | 6(3 double headed pistons) |
| Revolution range | 700-6000 rpm |
| Direction of rotation | Clockwise &Counterclockwise |
| Bore | 36.0 mm |
| Stroke | 26.7mm |
| Lubrication syste, | Splash lubrication |
| Shaft seal | Lip seal type |
| Oil | ZXL 100PG PAG OL(180 cm²) |
| Weight | 4.9kg(w/o clutch) |

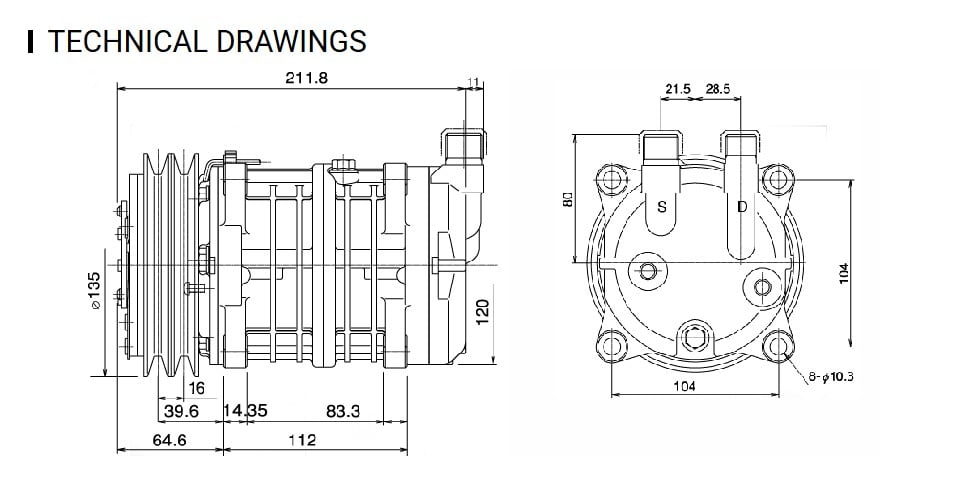

| Dimensions | 207-124-142 mm(w/o clutch) |
| Mounting | Ear or Direct |
Performance Hallmarks of Our Restored TM16:
Cost-Sensitive Fleet Solution: Offers a smart procurement alternative that drastically slashes repair and replacement budgets while maintaining original cooling efficiency standards.
Enhanced Mechanical Integrity: We apply precision re-honing and rigorous dynamic balancing to all moving parts, which significantly dampens operational noise and prevents premature internal wear.
Zero-Escape Sealing: Each rebuild features upgraded fluoroelastomer (FKM) shaft seals to ensure a hermetic barrier, successfully eliminating common early-stage oil seepage issues found in older units.
Global Quality Infrastructure & Production Certifications
At our facility, quality control is a continuous loop rather than a final checkpoint. We proudly present the industrial credentials that validate our position as a trustworthy partner in the global aftermarket:

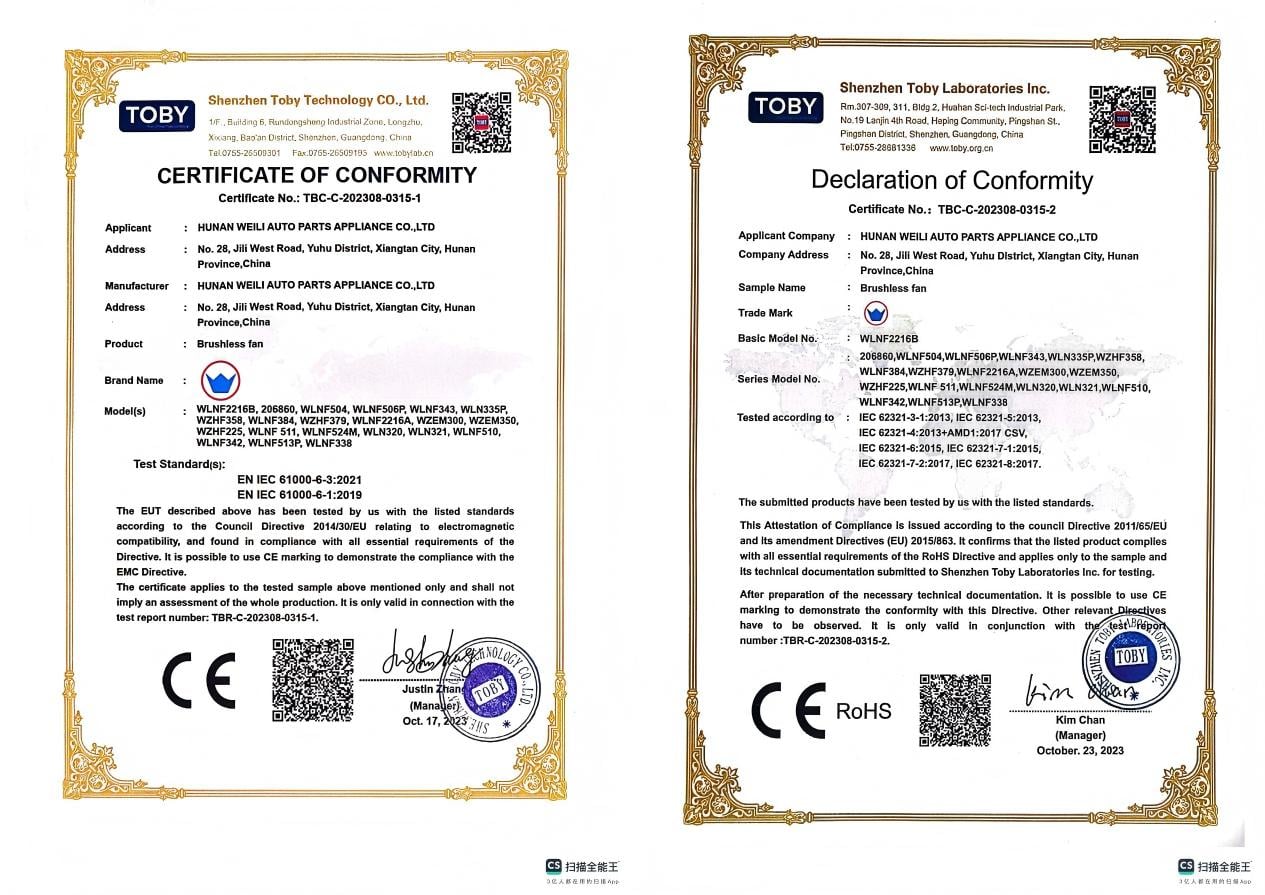

Certified Operational Standards

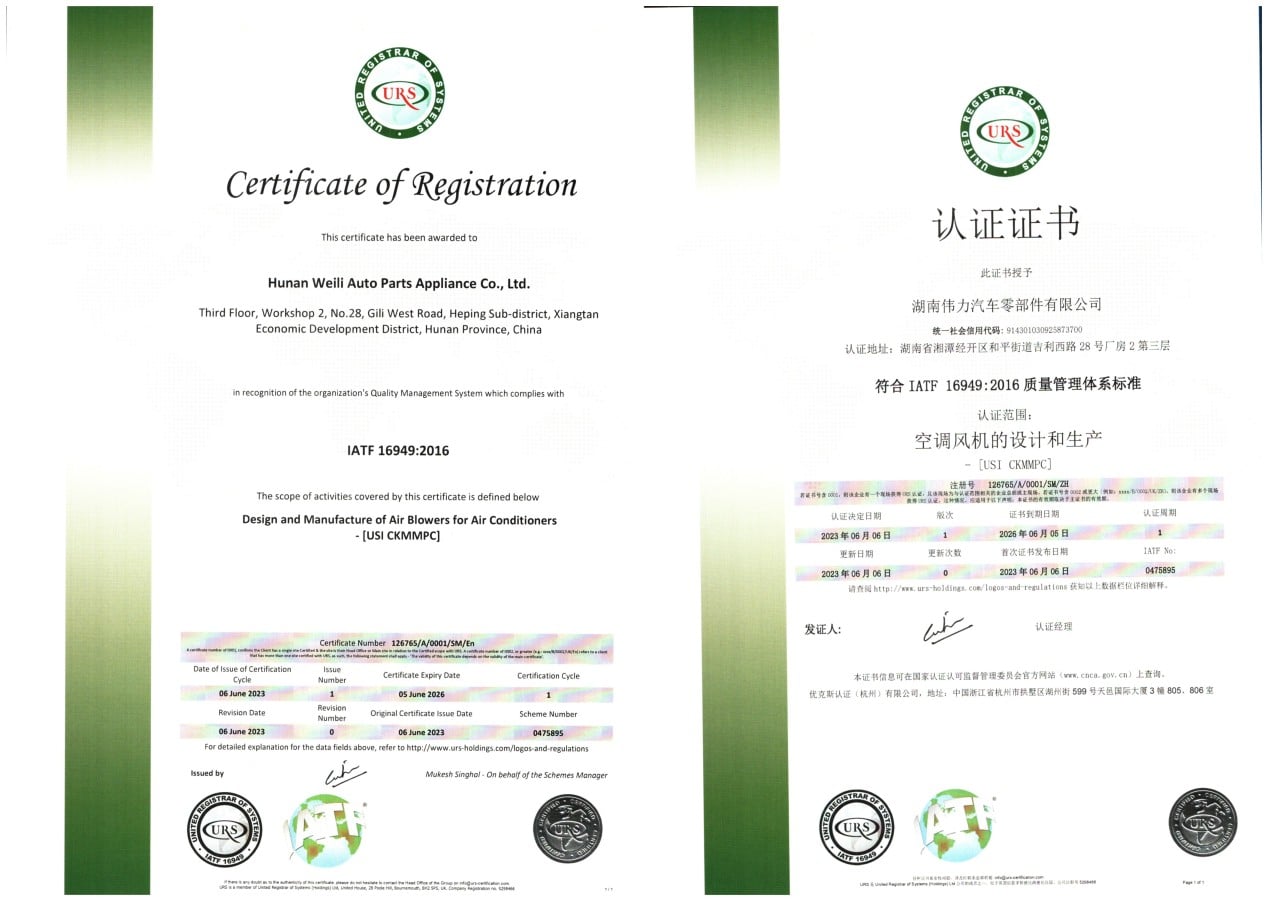

IATF 16949:2016 Automotive Quality Management System (Mandatory for tier-1 automotive supply chains).
ISO 9001:2008 & CE / RoHS Compliance (Ensuring market readiness for EU and North American territories).
National High-Tech Status & Provincial "S3N Little Giant" recognition by the Chinese government.
Self-Developed Technology: Our parent engineering facility has an extensive portfolio comprising 4+6 Invention Patents, 17 Utility Model Patents, and 3 Design Patents focused on motor and compressor optimization.

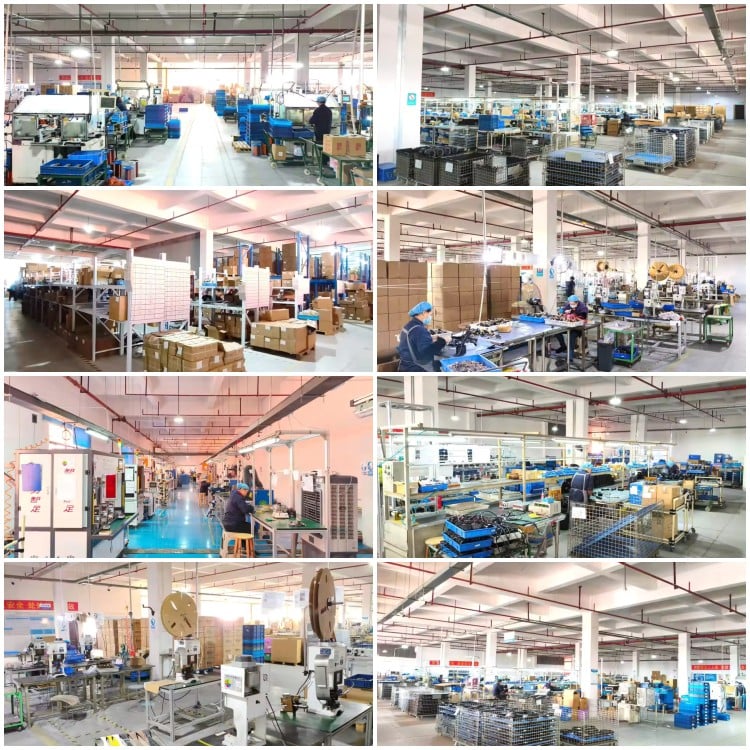

Advanced Workshop & In-House Testing Facilities

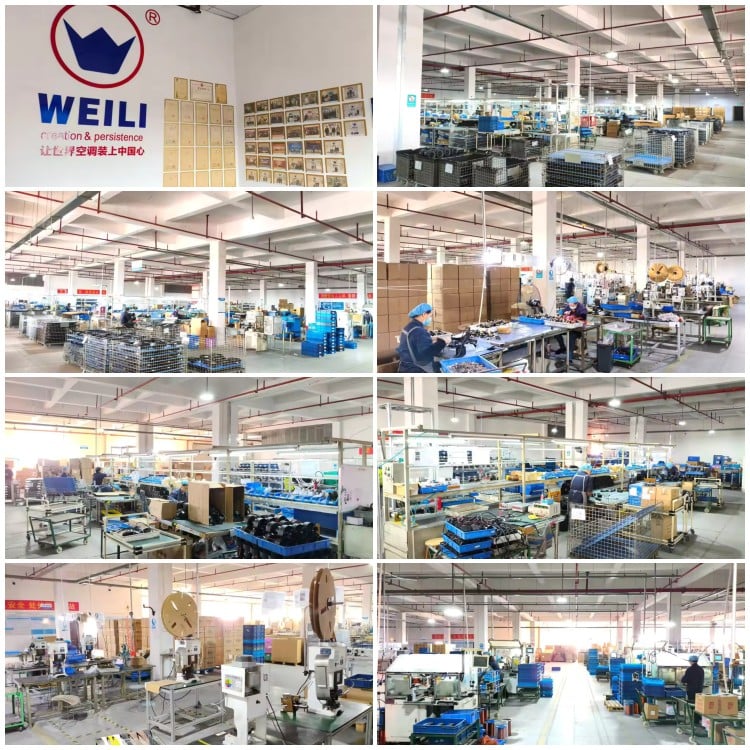

Industrial Campus: Strategically situated in Xiangtan’s Jiuhua National Economic Development Zone, our factory occupies over 20,000 square meters of purpose-built industrial space.

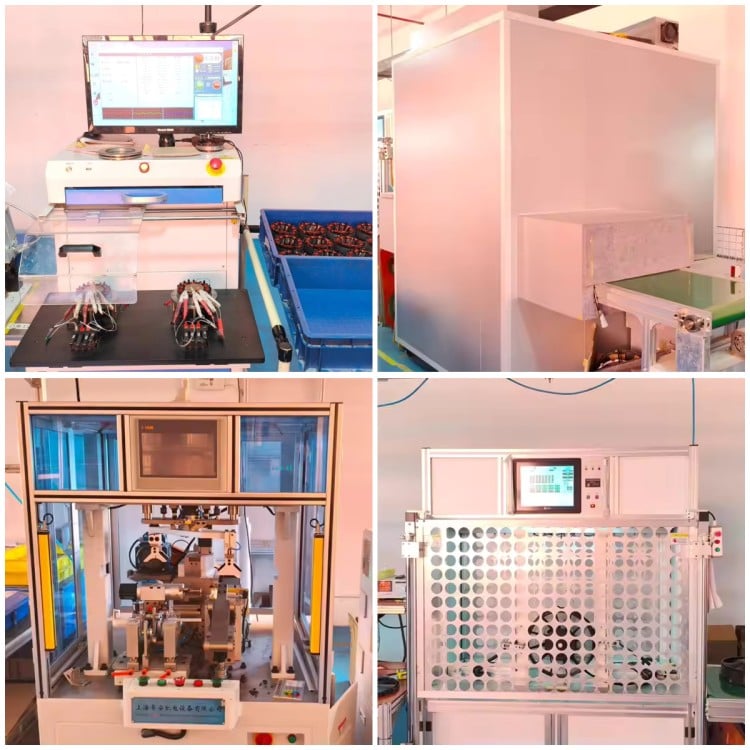

Precision Instrumentation: Our production lines utilize fully automated CNC turning centers and advanced laser balancing machines to restore complex compressor geometries to micron-level accuracy.

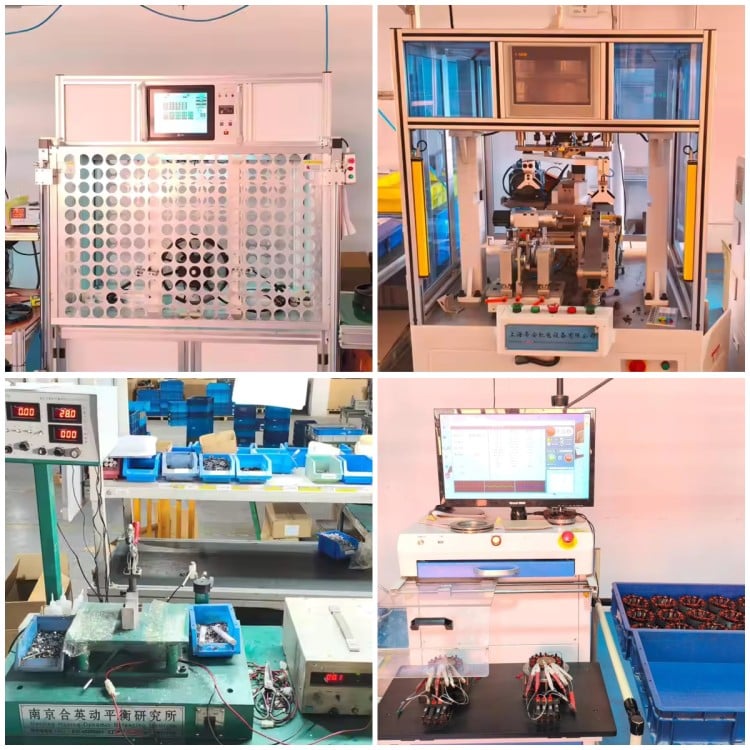

Dynamic Performance Lab: Our internal QA lab is equipped with climate-controlled test chambers and acoustic testing rooms. Every restored Valeo TM16 unit undergoes mandatory pass/fail testing on our calibrated dynamometer rigs to verify airflow performance, pressure stability, and noise profiles before leaving the facility.
Global Distribution Footprint: Our components are currently exported to over 50 nations and territories, including established markets in the USA, Germany, South Korea, Russia, and across the Middle East and Africa, accumulating annual global sales surpassing 90 million RMB.
Technical Expertise & Collaborative Research
Founder & Strategic Counsel: Founded by Mr. Yang Hao (an alumnus of The University of Manchester, UK). We also leverage the strategic advisory of Mr. Hu Mengjiao, a senior specialist from the State Key Laboratory at Tsinghua University.
Ongoing Academic Partnership: We maintain a dedicated, ongoing joint research project with the College of Electrical and Information Engineering at Hunan University, focusing on advanced motor control systems and thermal dynamics for emerging electric commercial vehicles.
Senior Engineering Corps: Our R&D division includes seasoned mechanical and electrical engineers who previously served in technical leadership roles at renowned global auto component giants such as Shanghai Brose Automotive and Nidec (Japan).
Wide-Range Application Scenarios for the TM16 Core
Unlike heavy-duty truck compressors, the remanufactured Valeo TM16 excels in compact, high-efficiency cooling roles across various light transport mediums:
Sprinter Vans & Mini-Coaches: Extensively utilized in European-style passenger vans and mid-size commercial minibuses operating in high-density urban transit systems.
Light Commercial Pickups: Perfectly adapted for cabin climate control in light pickup trucks and utility vehicles often used in construction site support and logistics.
Specialty Emergency Vehicles: Frequently found in ambulance and emergency response vehicles where reliable, fail-safe cooling is critical for paramedics and patients.
Agricultural & Off-Road Machinery: Deployed in the enclosed cabins of agricultural harvesters and construction loaders, where ambient temperatures are usually extreme.
Marine & RV Cooling Systems: Occasionally used in marine cabin air conditioners and the auxiliary HVAC systems of recreational vehicles (RVs) due to its compact footprint and reliable performance.
Invitation to Global Distributors & Service Centers
As we continue to scale our international operations, we are actively seeking collaborative opportunities with commercial vehicle parts distributors, independent AC repair workshops, fleet spare parts wholesalers, and cross-border e-commerce merchants seeking a reliable, factory-direct source for premium rebuilt compressors.
Why Partner with Hunan Weili for TM16 Supply?
Competitive Channel Pricing: By dealing directly with a vertically integrated rebuild facility, our partners eliminate unnecessary supply chain markups, ensuring high profitability on every unit sold to local repair shops.
Rapid Turnaround Capabilities: We maintain substantial safety stock of both pre-processed cores and finished compressor units. Standard orders can typically be dispatched within 3 to 7 business days, drastically shortening your lead times compared to standard overseas sourcing.
Multilingual Application Support: We offer a dedicated technical assistance desk with English and Mandarin-speaking support engineers to help your local technicians with installation nuances and vehicle-specific compatibility checks.
Strict Regional Safeguards: We maintain a tight anti-diversion policy. Partners engaged under our exclusive representation contracts will receive absolute territorial protection, ensuring your local market share remains secure.
Market Enablement Tools: We provide our official IATF 16949 dealership authorization, digital catalogs, and localized marketing assets to support your customer outreach and industry exhibitions.
If you have a well-established distribution network in the automotive aftermarket, or directly manage a maintenance program for a light commercial vehicle fleet, we invite you to connect with our global sales team to formalize a rewarding dealership partnership.
Global Contact Information
Hunan Weili Auto Parts Appliance Co., Ltd
Corporate Address: No. 28, Jili West Road, Jiuhua Economic Development Zone, Xiangtan City, Hunan Province, China
International Business Hotline (WhatsApp / WeChat): +86-18670382782
Direct Landline: +86-0731-82034997 / 82034998
E-Mail: [email protected]
