Valeo TM16 AC Compressor – Compact 163cc Swash-Plate Unit for Mini-Buses, Vans & Light Commercial Vehicles | 12V/24V R134a
- Overview
- Recommended Products
- Sprinter vans & mini-buses: 8PK belt systems with 12V or 24V clutches.
- Mid-size passenger vehicles: factory AC systems running R134a.
- Light commercial trucks: cabin cooling for urban delivery fleets.
- Aftermarket conversion: a proven core for workshop-fit AC retrofits.
- Cost-effective: substantially lower than new-OEM pricing with full rebuild documentation.
- Precision rebuild: re-honing, dynamic balancing and upgraded FKM seals on every unit.
- Zero-escape sealing: eliminates refrigerant bleed and oil seepage at the shaft.
- IATF 16949 certified facility, exported to 50+ countries for 17 years.
- Headquarters: No. 28, Jili West Road, Jiuhua Economic Development Zone, Xiangtan City, Hunan Province, China
- WhatsApp / WeChat: +86-18670382782 | Landline: +86-0731-82034997 / 82034998
- E-Mail: [email protected]
- Websites: www.weilipart.com | www.weiliautomotive.com | www.cooliparts.com
The Light-Vehicle Cooling Solution
Not every commercial AC job needs a 6-cylinder monster. The Valeo TM16 is the compact member of the TM family – 163 cm³/rev, 6 cylinders on a heavy-duty swash plate – sized for sprinter vans, mini-coaches, mid-size passenger vehicles and light trucks where space and belt-drive capacity are limited.
As a remanufactured unit from Hunan Weili, the TM16 restores factory-fresh cooling at a fraction of new-OEM cost, with upgraded FKM shaft seals that eliminate the early oil-seepage failures typical of ageing units.
Remanufactured Valeo TM16 – Compact 163cc Unit
Technical Specifications
Model |
Valeo TM16 |
|
Technology |
Heavy-Duty Swash Plate |
|
Displacement |
163 cm³ / rev |
|
Cylinders |
6 (3 double-headed pistons) |
|
Revolution range |
700 – 6000 rpm |
|
Rotation |
Clockwise & counter-clockwise |
|
Bore x stroke |
Ø 36.0 mm x 26.7 mm |
|
Lubrication |
Splash lubrication |
|
Oil |
ZXL100PG PAG (180 cm³) |
|
Weight (w/o clutch) |
4.9 kg |
|
Dimensions (w/o clutch) |
207 x 124 x 142 mm |
|
Mounting |
Ear or direct |
|
 |
 |
| Valeo TM Series 8PK Compressor | Valeo TM Series – Complete Unit |
Which Vehicles Fit the TM16?
Why a Rebuilt TM16 from Hunan Weili

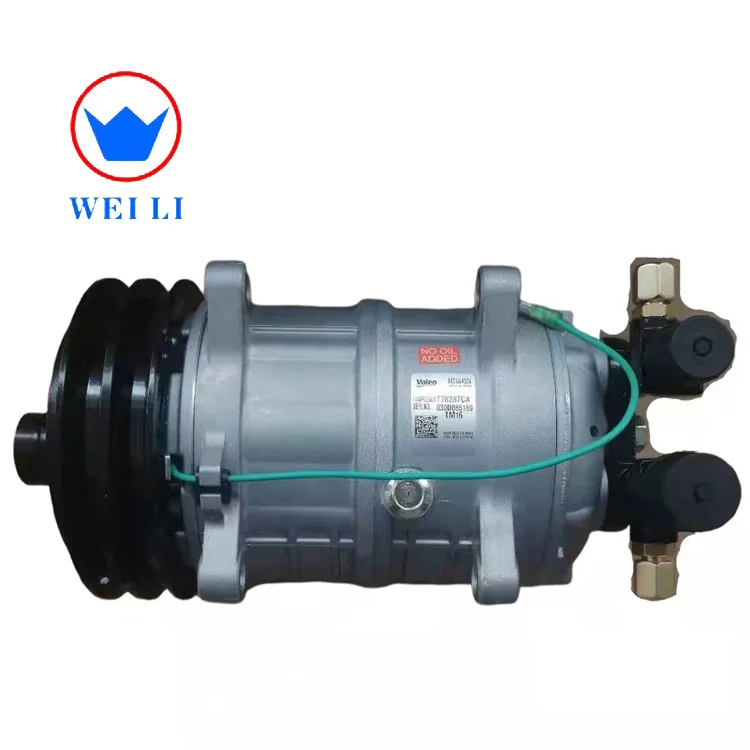

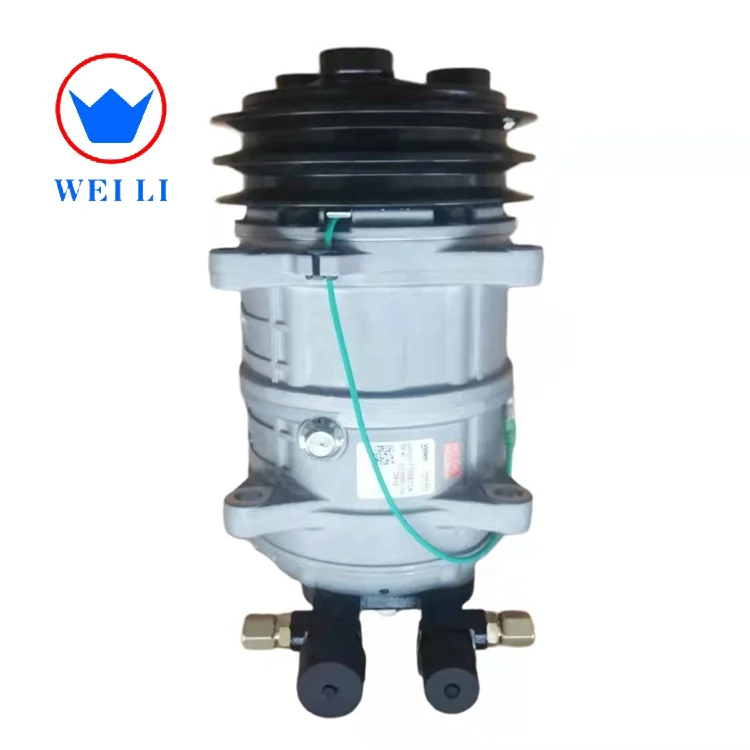

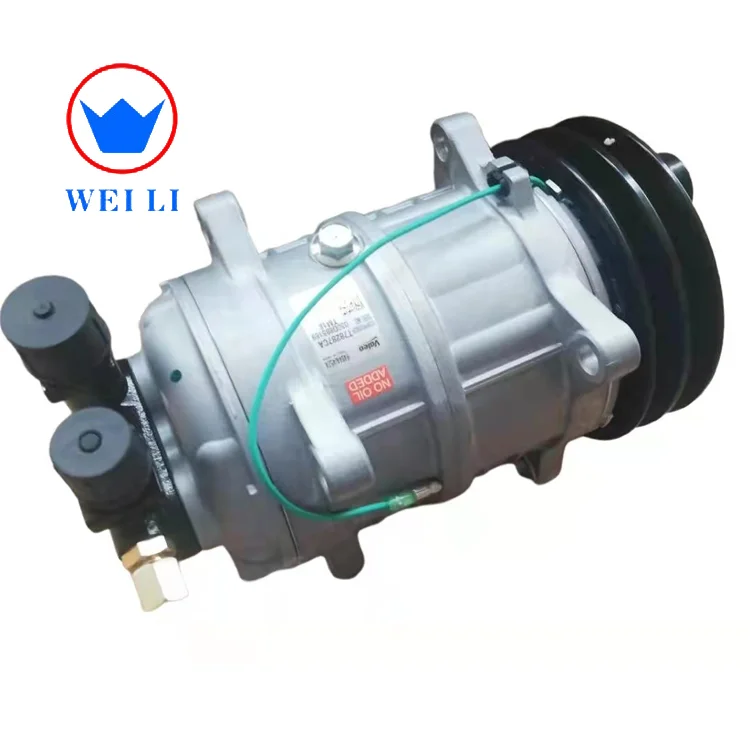

Valeo TM Series – Unit View

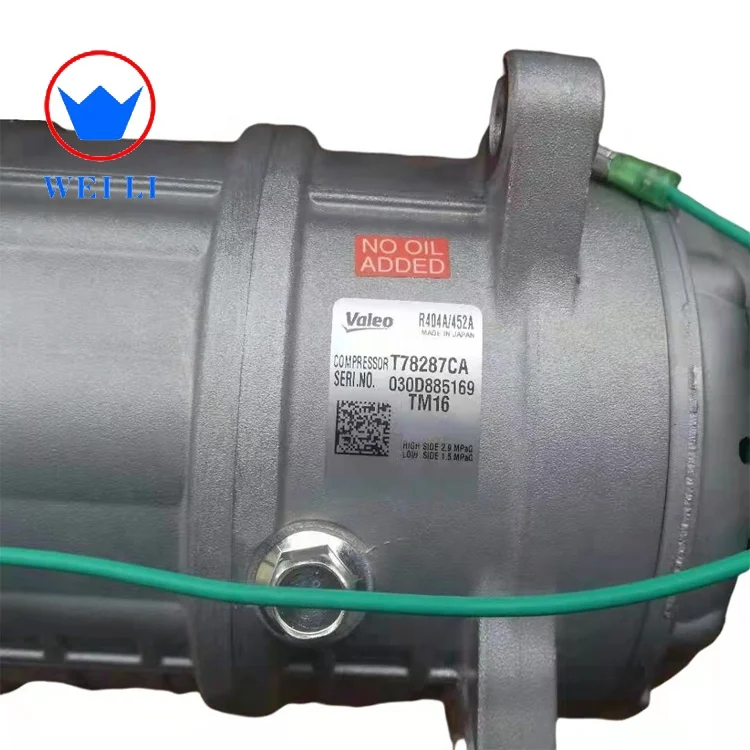

Valeo Nameplate & Label (Detail)

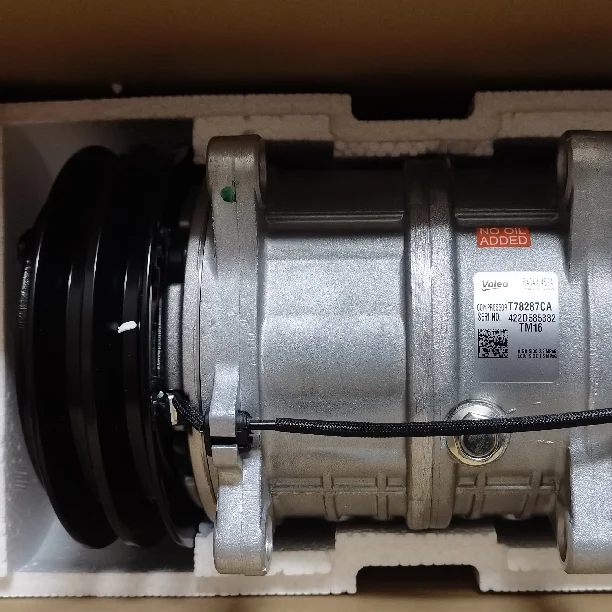

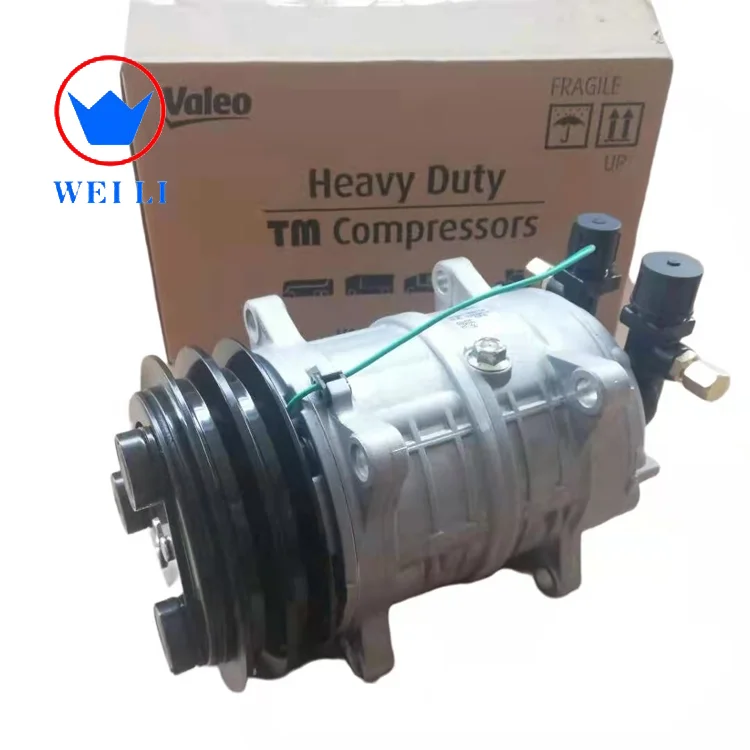

Valeo Branded Packaging
Valeo TM16 – Frequently Asked Questions
Q: What displacement is the TM16? A: 163 cm³/rev across 6 cylinders (3 double-headed pistons).
Q: Which vehicles use it? A: Mini-buses, sprinter vans, mid-size passenger vehicles and light trucks.
Q: 12V or 24V? A: Both clutch voltages are available with the 8PK pulley.
Q: Is the TM16 part of a larger family? A: Yes – the TM family extends through TM13/TM15 (same 8PK group), TM21, TM31, TM43 and TM65.
Q: Lead time? A: 3–7 business days for standard models.
