WL42LY Roof-Mounted Bus Air Conditioner — Flagship Split-Roof Configuration
Flagship file FF-WL42LY | The top of the WL LY split-roof line: 4.99 m roof platform, 4GFCY drive and the highest evaporator blower count in the family.
- Overview
- Recommended Products
1. Why a 4.99 m Roof Platform
At 13.0–14.0 m vehicle length — the largest single-deck coaches — the roof AC must carry more coil surface and more airflow than any shorter platform can hold. The WL42LY's 4,990 × 1,840 × 190 mm roof profile mounts 8 evaporator blowers and 6 condenser fans while staying at 236 kg class weight for roof-load safety.
2. Official Technical Data
Parameter |
Value |
Cooling capacity |
42 kW (std) / 44 kW (max) |
Applicable vehicle |
13.0 – 14.0 m coach |
Dimensions |
4990 × 1840 × 190 mm |
Weight |
≤ 236 kg |
Voltage |
DC 24V |
Evaporator airflow |
8,800 m³/h |
Condenser airflow |
14,400 m³/h |
4GFCY — 750 cc |
|
Refrigerant |
R134a — 13.0 kg |
Evaporator / condenser fans |
8 / 6 pcs |
Coils |
Fin and tube (copper) both sides |
Power consumption |
≤ 130 A (24V) |

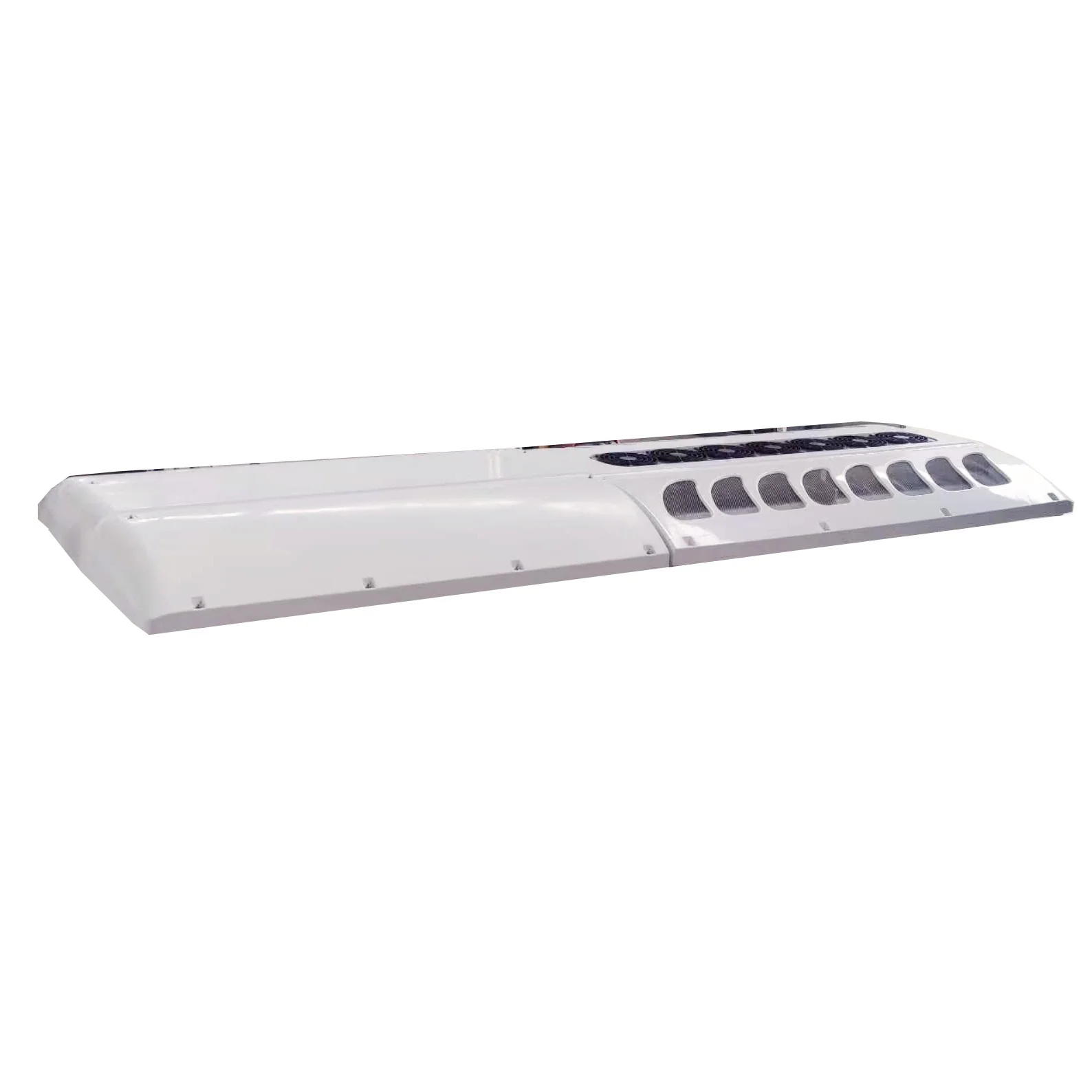

Fig. 1 — WL42LY complete roof unit (external view)

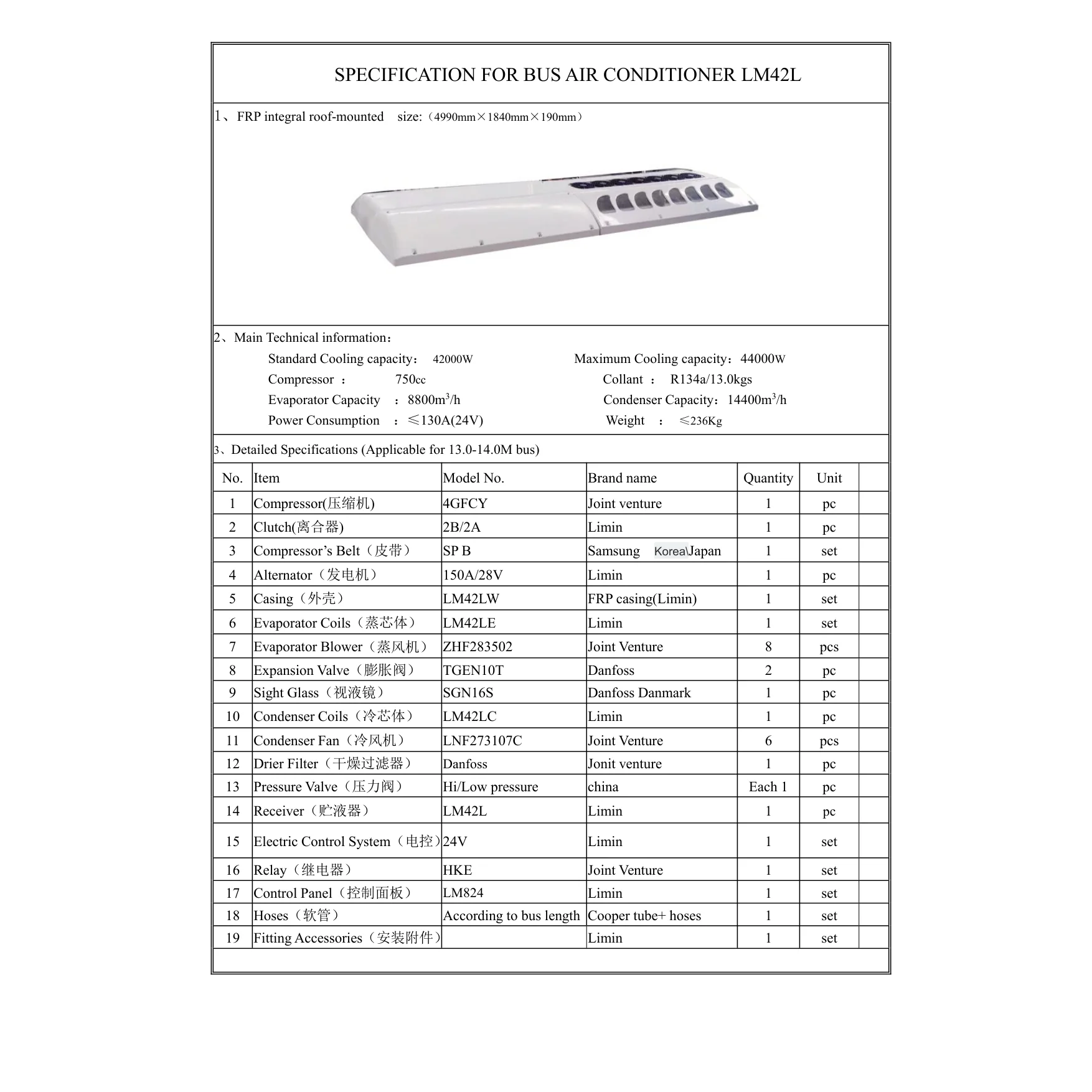

Fig. 2 — Manufacturer's specification sheet: full component BOM (8 evaporator + 6 condenser fan configuration)
3. The Drive Train
The 4GFCY compressor (750 cc) — a Bitzer-family open-type unit — is matched with a 2B/2A clutch, SPB belt and 150 A / 28 V alternator. Two TGEN10T Danfoss expansion valves split the refrigerant feed across the large coil banks, and a Danfoss SGN16S sight glass monitors charge condition at a glance.
4. Kit Configuration — Component BOM
Component |
Model / Brand |
Qty |
Compressor |
4GFCY (joint venture) |
1 |
Clutch |
2B / 2A |
1 |
Belt |
SPB (Samsung Korea/Japan) |
1 set |
150 A / 28 V |
1 |
|
Evaporator blower |
ZHF283502 (joint venture) |
8 |
Condenser fan |
LNF273107C (joint venture) |
6 |
Expansion valve |
TGEN10T (Danfoss) |
2 |
Sight glass |
SGN16S (Danfoss Denmark) |
1 |
Drier filter |
Danfoss |
1 |
Control panel |
LM824 (Liming) |
1 |
Hoses |
Copper tube + hoses per bus |
1 set |

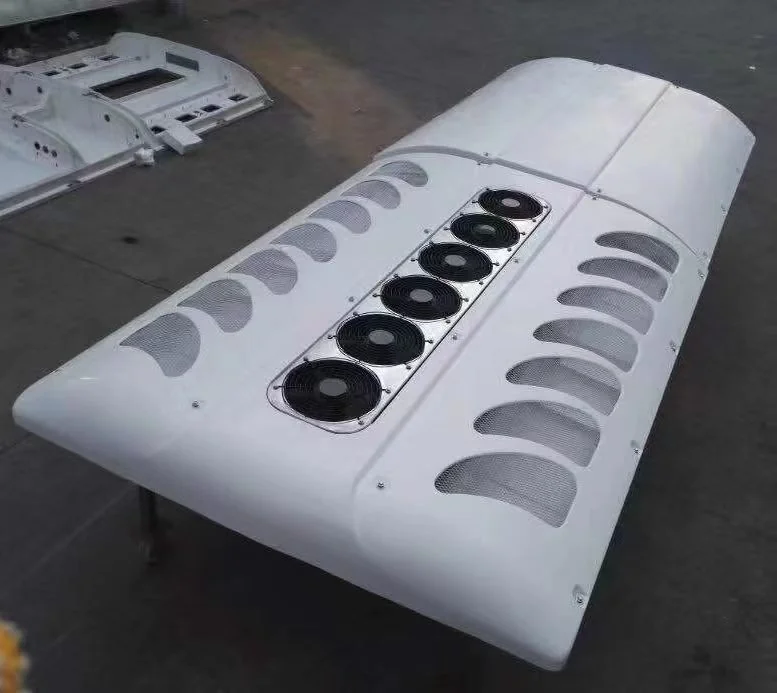

Fig. 3 — Same-family reference: WL38LY on workshop floor (WL42LY shares the LY split-roof architecture)
5. Buyer FAQ
Q1. What buses does the WL42LY fit?
13.0–14.0 m single-deck coaches and high-capacity passenger vehicles requiring 42–44 kW.
Q2. How does it differ from the WL38LY?
Longer platform (4.99 m vs 4.75/4.90 m) and higher capacity class (42/44 kW vs 38/42 kW) with the same 4GFCY-family drive.
Q3. Is the compressor included?
Yes — full kit includes 4GFCY compressor, 2B/2A clutch, SPB belt and 150 A alternator.
Q4. Why two expansion valves?
The large dual-bank coil needs two TGEN10T feeds for even distribution across the full 8,800 m³/h airflow.
Q5. What is the warranty?
Standard export warranty with technical documentation, spare parts list and remote troubleshooting.
