WL45N Double-Deck Bus Air Conditioner — Purpose-Built Roof Solution
Purpose-built file PB-WL45N | A double-deck bus has twice the cabin volume and twice the window area of a single deck — it needs a purpose-built unit, not an upsized standard one.
- Overview
- Recommended Products
1. Why Double-Deck Needs Its Own Unit
At 13.0–14.0 m with two full passenger decks, cabin volume approaches twice that of a single-deck coach. The WL45N answers with 46 kW standard / 48 kW maximum capacity, 10,800 m³/h evaporator airflow and 12 evaporator blowers — the airflow firepower to cool both decks, including the upper deck's roof-gain penalty.
2. Official Technical Data
Parameter |
Value |
Cooling capacity |
46 kW (std) / 48 kW (max) |
Applicable vehicle |
13.0 – 14.0 m double-deck bus |
Unit dimensions |
2035 × 750 × 1165 mm (per roof section) |
Weight |
≤ 305 kg |
Voltage |
DC 24V |
Evaporator airflow |
10,800 m³/h |
Condenser airflow |
14,400 m³/h |
BOCK / Bitzer 830K / 6NFCY — 970 cc |
|
Refrigerant |
R134a — 13.5 kg |
Evaporator / condenser fans |
12 / 6 pcs |
Coils |
Copper-tube, fin and tube |
Power consumption |
≤ 140 A (24V) |

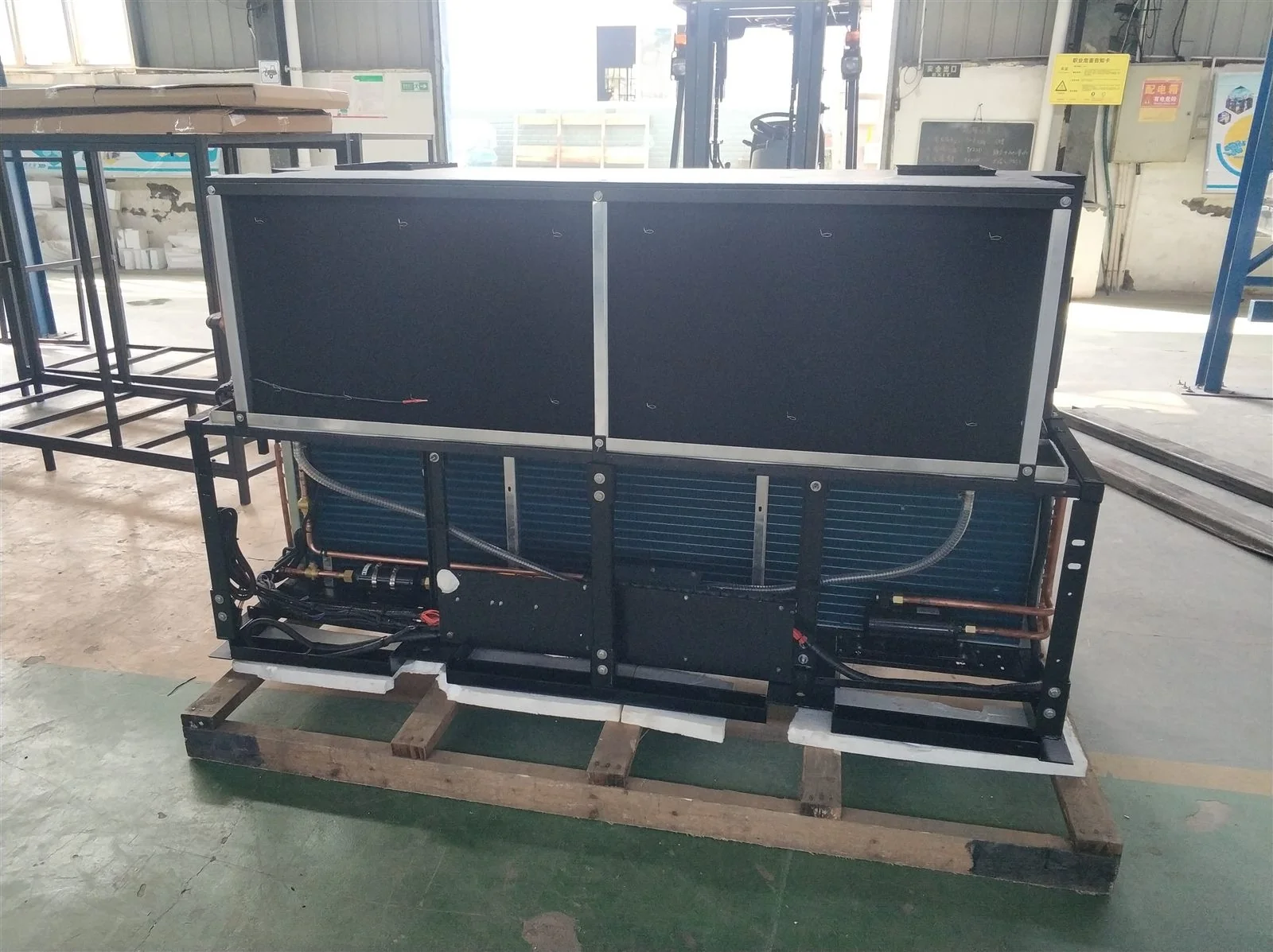

Fig. 1 — WL45N unit during assembly: matched coil banks and drive components
Fig. 2 — Coil and piping section on handling pallet (semi-finished view)
3. The 12-Blower Evaporator
Twelve ZHF283502 evaporator blowers distribute 10,800 m³/h through the copper-tube evaporator bank — enough to move air to both decks' rear rows even with the upper deck's solar load. Six LNF273107C condenser fans reject heat through 14,400 m³/h of condenser airflow.
4. Drive Train & Installation Footprint
The BOCK/Bitzer 830K or 6NFCY compressor (970 cc) is driven through a 2B/2A clutch and SPB belt with a 180 A / 28 V Prestolite alternator — the strongest electrical headroom in the WL range. The unit mounts in roof sections per the TX45N2 installation drawing.

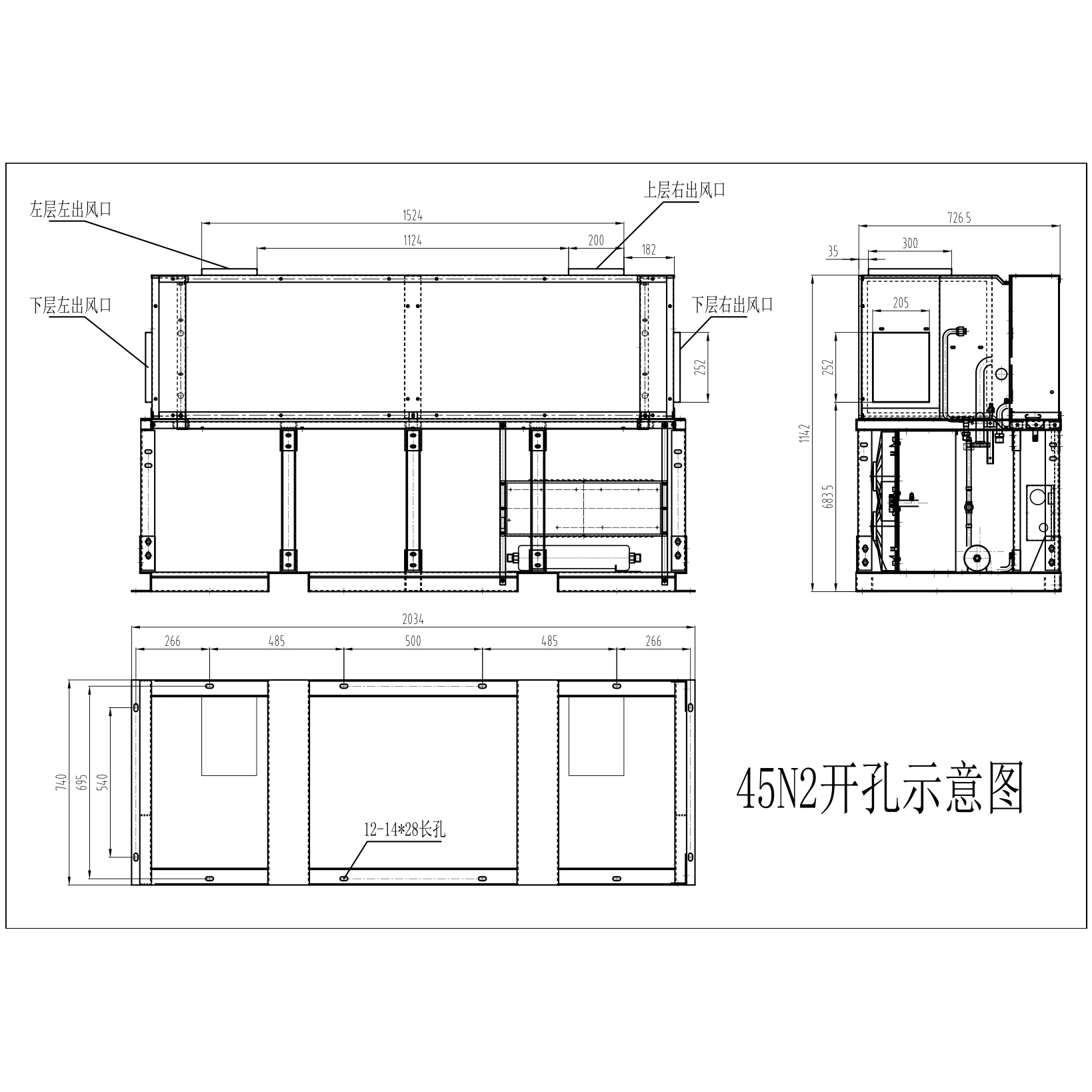

Fig. 3 — Manufacturer's installation and mounting-dimension drawing (TX45N2 platform)
5. Kit Configuration — Component BOM
Component |
Model / Brand |
Qty |
Compressor |
BOCK / Bitzer 830K / 6NFCY |
1 set |
Clutch |
2B / 2A |
1 |
Belt |
SPB (Samsung Korea/Japan) |
1 set |
180 A / 28 V (Prestolite) |
1 set |
|
Evaporator blower |
ZHF283502 (joint venture) |
12 |
Condenser fan |
LNF273107C (joint venture) |
6 |
Expansion valve |
TGEN10.0T / 4.5T (Danfoss) |
2 |
Sight glass |
SGN16S (Danfoss Denmark) |
1 |
Drier filter |
Danfoss |
1 |
Control panel |
LM824 (Liming) |
1 |

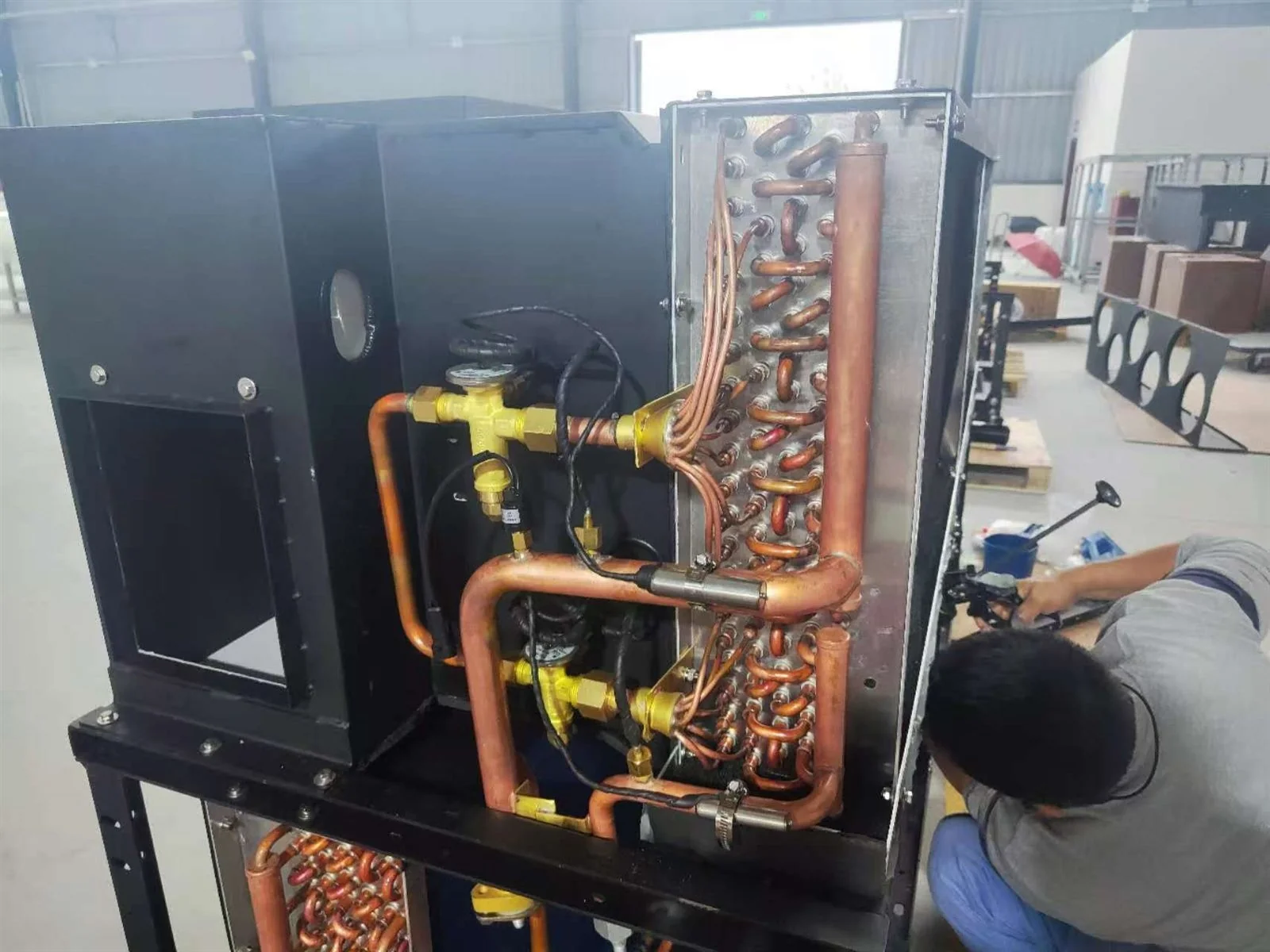

Fig. 4 — Internal coil and drive section detail
6. Buyer FAQ
Q1. What buses does the WL45N fit?
13.0–14.0 m double-deck buses and high-capacity tourist coaches.
Q2. Why 12 evaporator blowers?
Two passenger decks double the airflow requirement — 10,800 m³/h is needed to reach both decks' rear rows with margin for upper-deck solar gain.
Q3. Is the compressor included?
Yes — BOCK/Bitzer 830K or 6NFCY compressor, 2B/2A clutch, SPB belt and 180 A alternator are part of the kit.
Q4. What refrigerant does it use?
R134a with a 13.5 kg factory charge.
Q5. Do you support installation engineering?
Yes — the TX45N2 installation drawing and technical support are included with each order.
