WL30F1 Roof-Mounted Bus Air Conditioner — City Transit High-Load Profile
Transit profile TP-WL30F1 | Built for 11–12 m city buses: door cycling, stop-and-go, full standing load and high ambient heat — the harshest duty cycle in passenger transport.
- Overview
- Recommended Products
1. Why Transit Is the Harshest Duty
A city bus opens its doors every few hundred metres, packs standing passengers in direct sunlight, and crawls in traffic where ram airflow is zero. The WL30F1 answers with 32 kW (109,184 BTU) capacity, 6,400 m³/h evaporator airflow and an 8-blower evaporator that re-cools the cabin within seconds of each door event.
2. Official Technical Data
Parameter |
Value |
Cooling capacity |
32 kW (109,184 BTU) |
Applicable vehicle |
11.0 – 12.0 m bus |
Dimensions |
3300 × 1860 × 265 mm |
Weight |
≤ 215 kg |
Voltage |
DC 24V |
Evaporator airflow |
6,400 m³/h |
Condenser airflow |
14,400 m³/h |
4N / 655K — 650 / 750 cc |
|
Refrigerant |
R134a — 7.6 kg |
Condenser / evaporator fans |
5 / 8 pcs |
Condenser coil |
Parallel flow (aluminium) |
Evaporator coil |
Fin and tube (copper) |

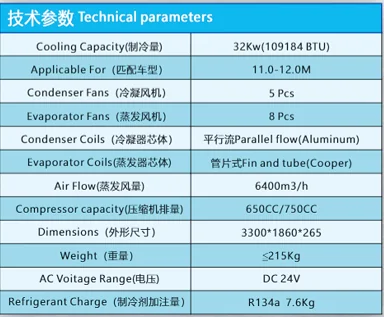

Fig. 1 — Official WL30F1 technical parameter table (manufacturer's catalogue data)
3. Eight Blowers, Instant Recovery
Each door opening dumps the cooled air out. The 8 × ZHF283502 evaporator blowers deliver 6,400 m³/h — enough airflow to re-establish cabin temperature in seconds, not minutes, between stops. This is the difference passengers feel on a 40 °C day.

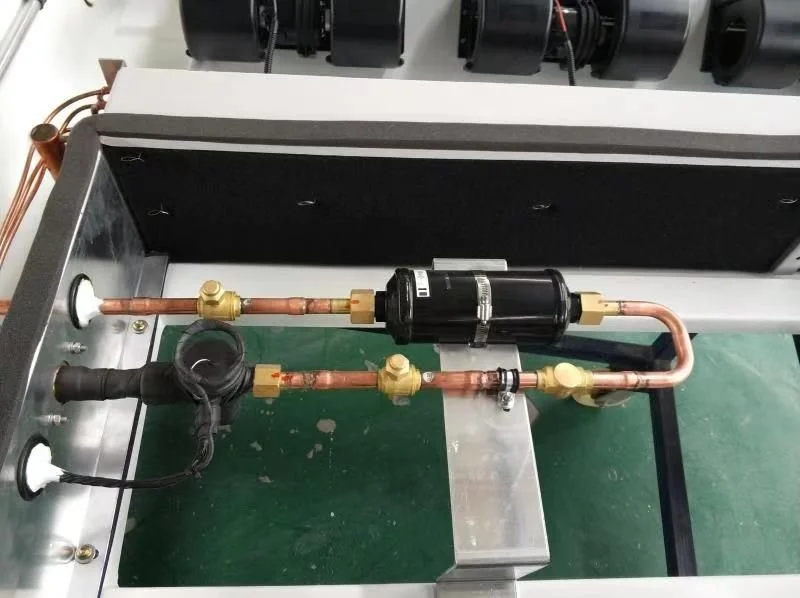

Fig. 2 — Internal piping and filter-drier layout (condenser side)

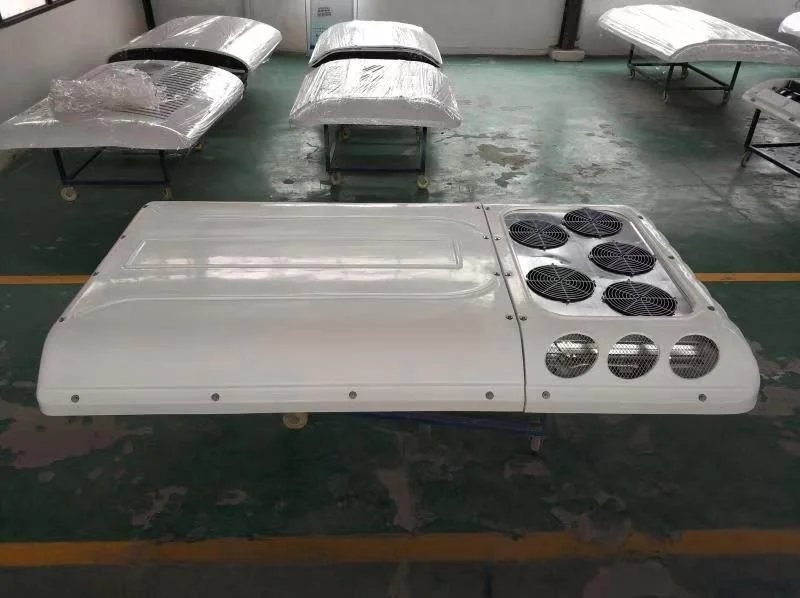

Fig. 3 — WL30F1 finished units at the factory before export packing
4. Branded Fan Components
The two workhorse fans of the WL series are shown below — both joint-venture components with proven transit duty records:

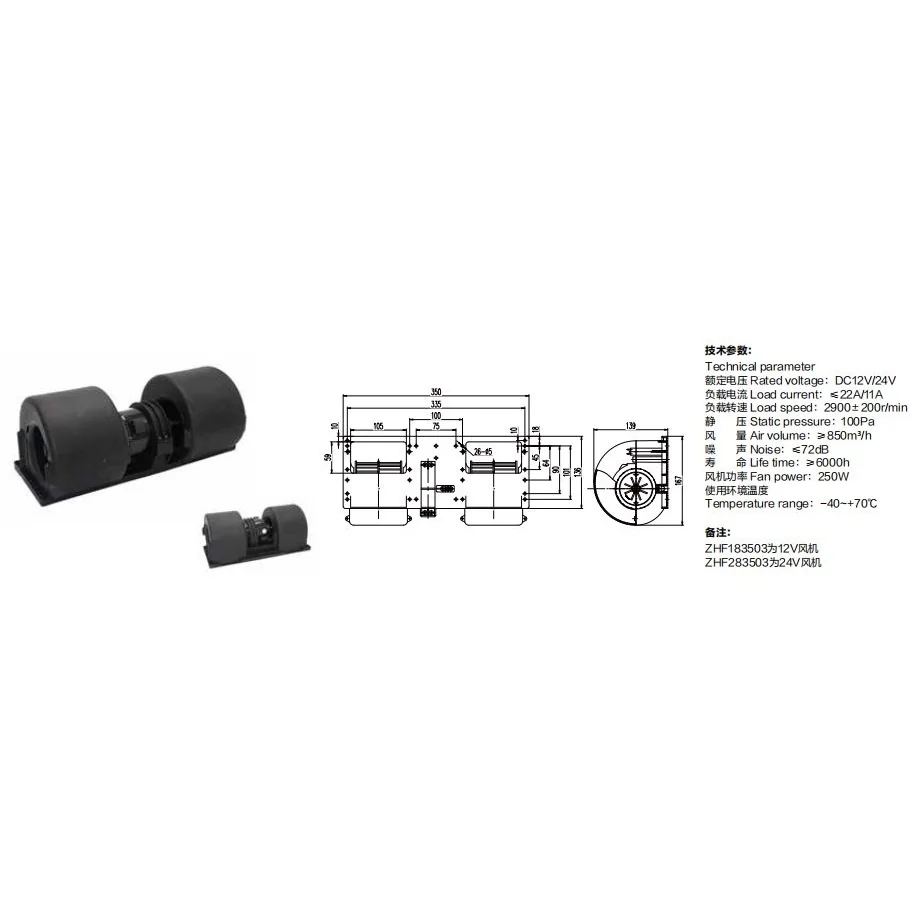

Fig. 4 — ZHF283502 evaporator blower (joint venture)

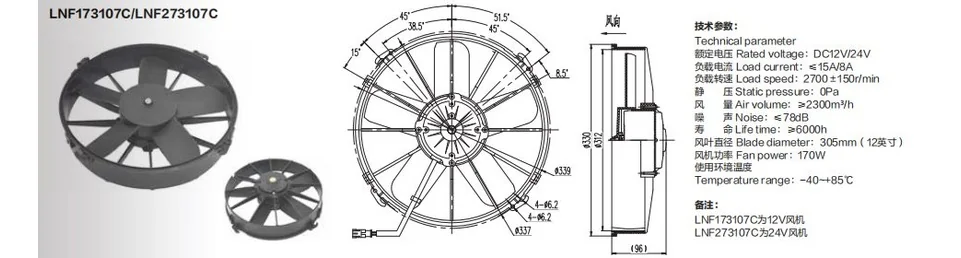

Fig. 5 — LNF273107C condenser fan (joint venture)
5. Kit Configuration — Component BOM
Component |
Model / Brand |
Qty |
Compressor |
4N / 655K (joint venture) |
1 |
Clutch |
2A / 2B |
1 set |
Belt |
SPB (Samsung Korea/Japan) |
1 set |
150 A / 28 V (Prestolite USA) |
1 set |
|
Evaporator blower |
ZHF283502 (joint venture) |
8 |
Condenser fan |
LNF273107C (joint venture) |
5 |
Expansion valve |
TGEN10T (Danfoss) |
1 |
Sight glass |
SGN16S (Danfoss Denmark) |
1 |
Drier filter |
Danfoss |
1 |
Control panel |
LM824 (Liming) |
1 |
6. Installation & Roof Opening

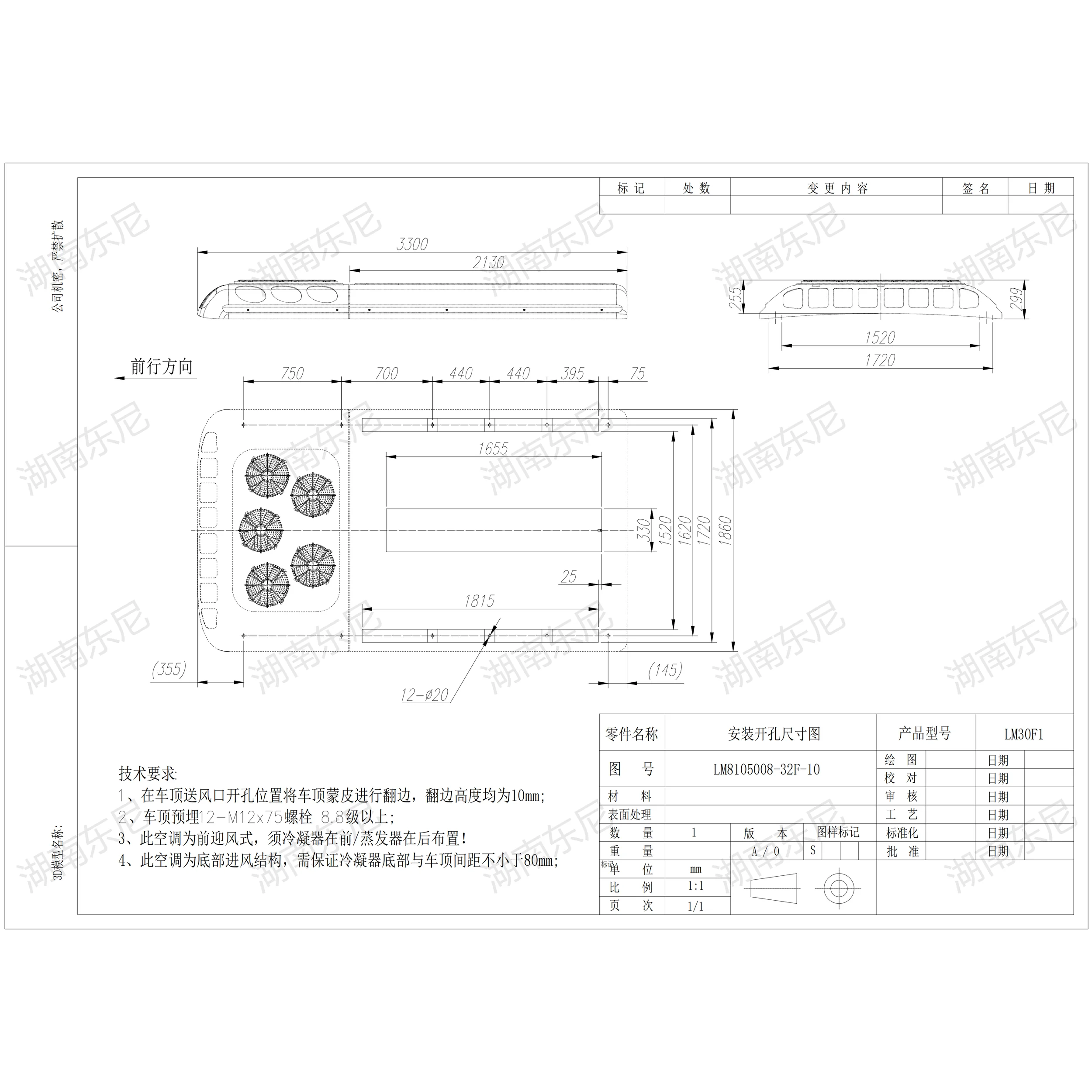

Fig. 6 — Manufacturer's roof-opening drawing: cut-outs and mounting points (mm)
7. Buyer FAQ
Q1. What buses does the WL30F1 fit?
11.0–12.0 m city buses and transit fleets with high door-cycling duty.
Q2. Why is the refrigerant charge so high (7.6 kg)?
The larger condenser/evaporator circuit and receiver volume require more charge for stable operation at full capacity.
Q3. What alternator is recommended?
The kit offers a 150 A / 28 V Prestolite alternator to sustain the 24V system under full AC electrical load.
Q4. Is the compressor included?
Full kit includes 4N/655K compressor, 2A/2B clutch, SPB belt and alternator; roof-only option available.
Q5. What is the lead time for fleet orders?
Stock units within 7 days; fleet orders per production schedule (monthly capacity 500+ units across the WL series).
