WL16F1 Roof-Mounted Bus Air Conditioner — Component Deep Dive
Engineering analysis EA-WL16F1 | A component-by-component look at how the 4-evaporator / 3-condenser configuration delivers 18 kW for 7.3–8.2 m buses.
- Overview
- Recommended Products
1. The Architecture in One View
The WL16F1 is an FRP integral roof-mounted assembly for 7.3–8.2 m buses — city shuttles, tourist minibuses and light passenger fleets. Rated at 18 kW (61,416 BTU) with 3,200 m³/h evaporator airflow, it is built around a 4-blower evaporator / 3-fan condenser split that matches longer cabins and higher solar load.
2. Official Technical Data
Parameter |
Value |
Cooling capacity |
18 kW (61,416 BTU) |
Applicable vehicle |
7.3 – 8.2 m bus |
Dimensions |
2350 × 1620 × 220 mm |
Weight |
≤ 110 kg |
Voltage |
DC 12V / 24V |
Evaporator airflow |
3,200 m³/h |
Condenser airflow |
7,200 m³/h |
JS32 — 303 / 380 cc |
|
Refrigerant |
R134a — 2.6 kg |
Condenser / evaporator fans |
3 / 4 pcs |
Condenser coil |
Parallel flow (aluminium) |
Evaporator coil |
Fin and tube (copper) |

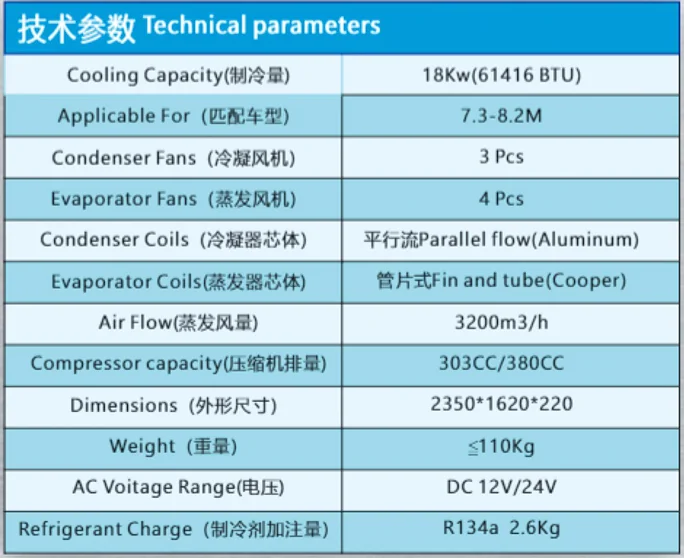

Fig. 1 — Official WL16F1 technical parameter table (manufacturer's catalogue data)
3. Evaporator Section — 4 Blowers, One Balanced Core
The evaporator section drives 4 centrifugal blowers (ZHF283502) across a copper-tube / aluminium-fin coil. Four blowers — not two — is what keeps the rear rows cool on an 8 m cabin: airflow is delivered along the full duct length instead of dying out halfway.

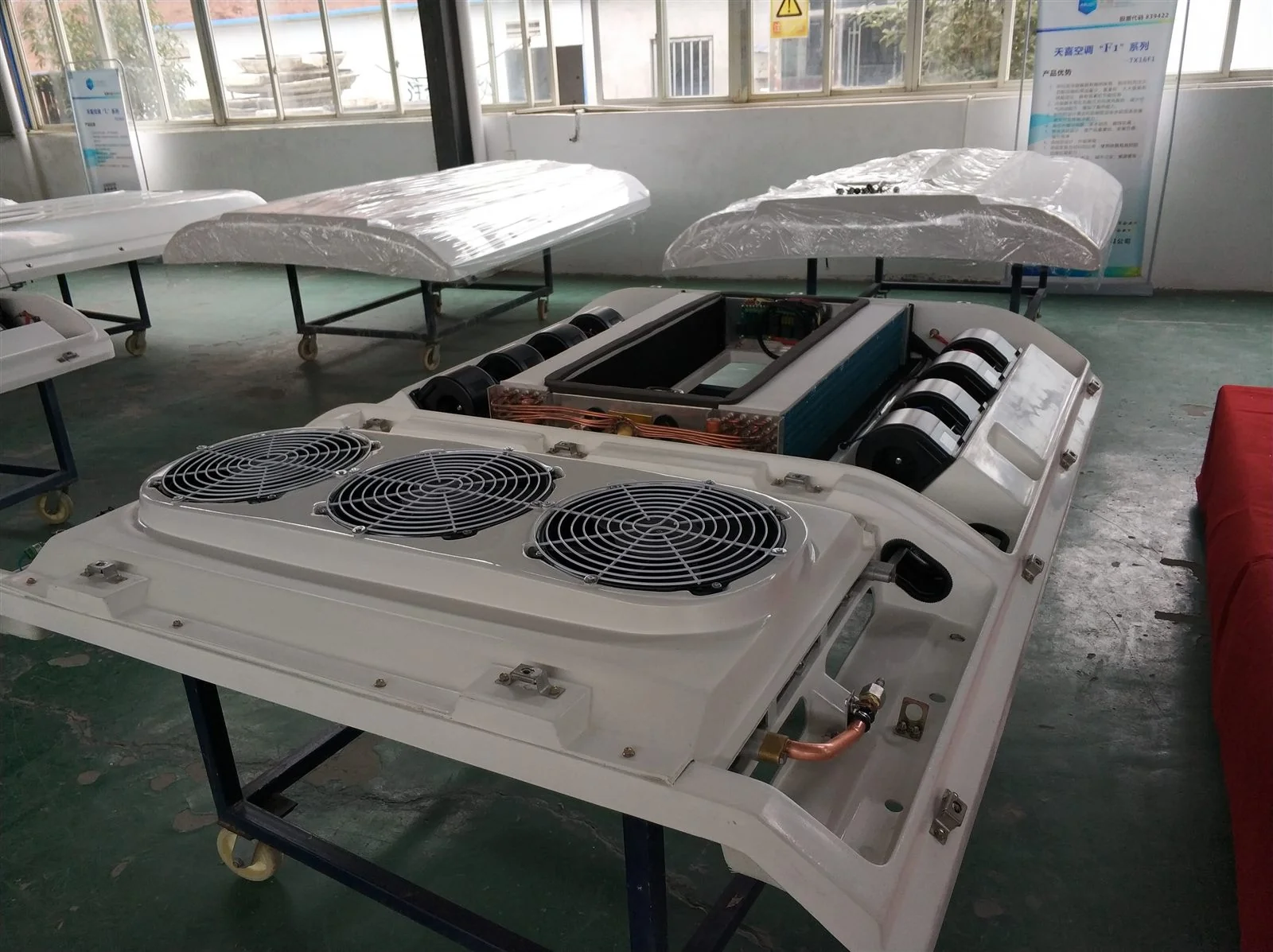

Fig. 2 — Evaporator section: dual centrifugal blowers and copper/aluminium core with sealed harness

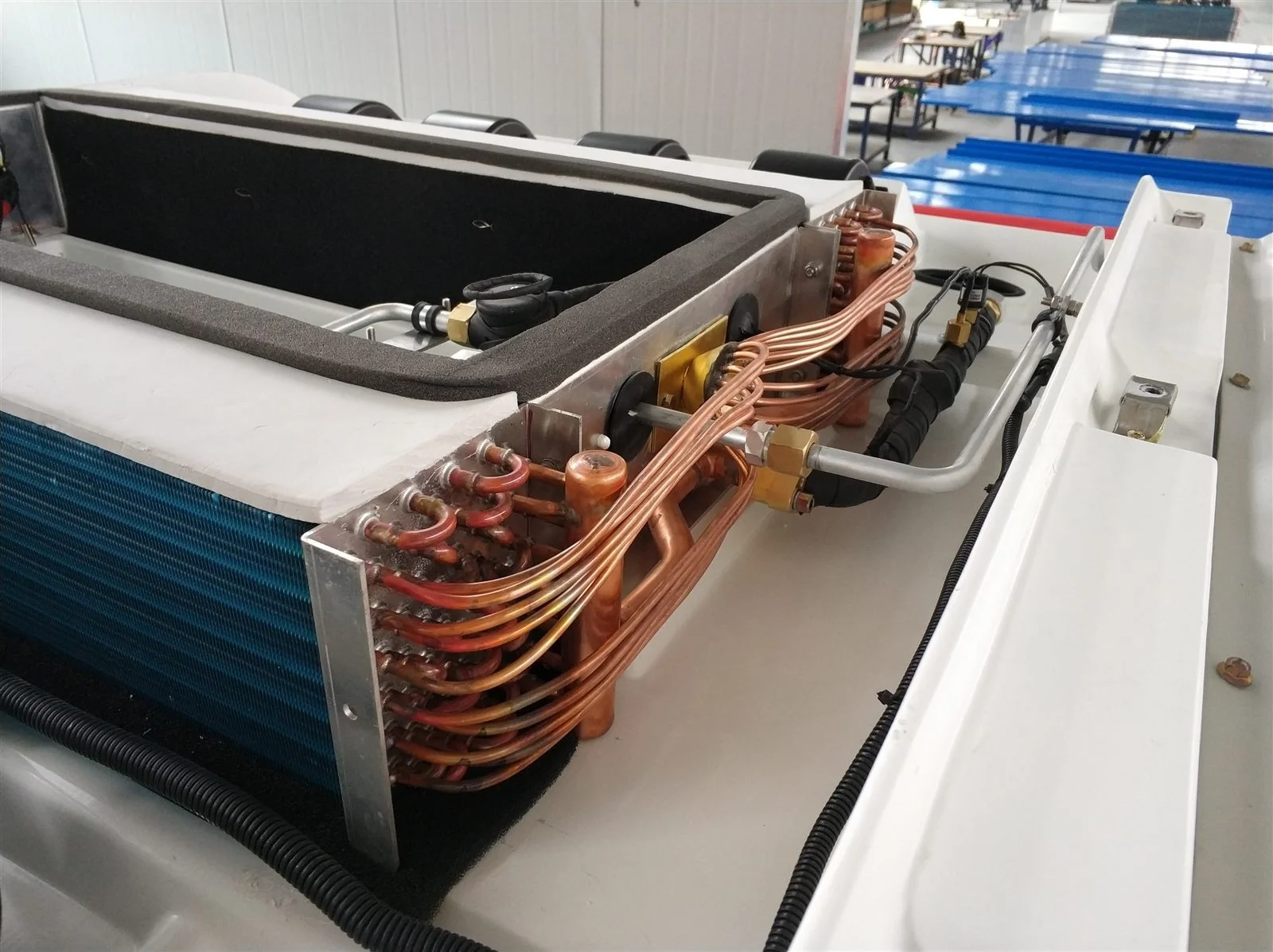

Fig. 3 — Evaporator coil and copper refrigerant lines detail
4. Condenser Section — 3 Fans for Idle Performance
Three LNF273107C condenser fans push 7,200 m³/h through the parallel-flow aluminium condenser — the idle and low-speed airflow headroom that keeps discharge pressure stable in city traffic, where natural ram airflow is near zero.

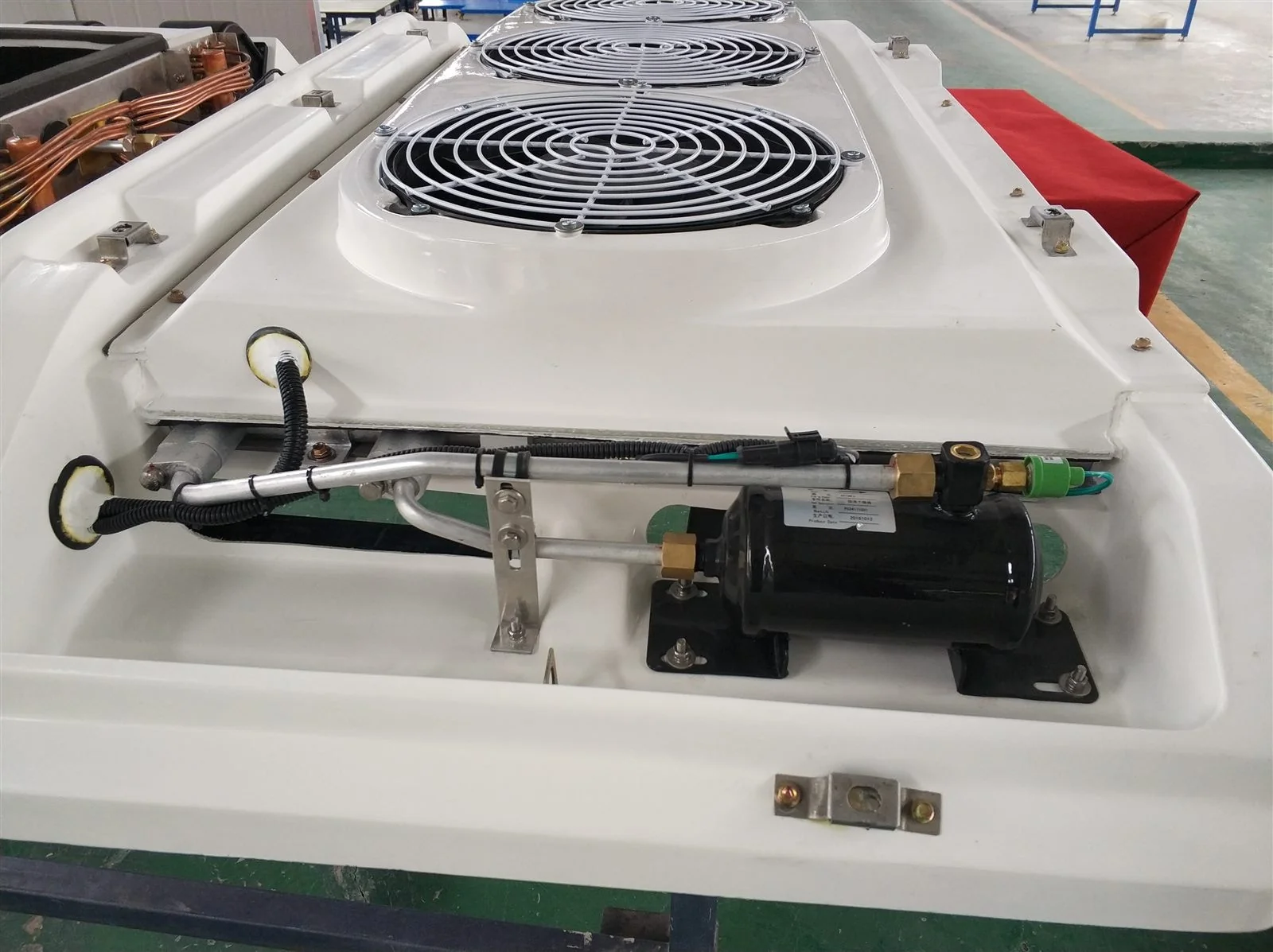

Fig. 4 — Condenser-side detail: fans, piping and receiver-drier on the assembly floor
5. Kit Configuration — Component BOM
Component |
Model / Brand |
Qty |
Compressor |
JS32 (joint venture) |
1 |
Evaporator blower |
ZHF283502 (joint venture) |
4 |
Condenser fan |
LNF273107C (joint venture) |
3 |
Expansion valve |
TGEN4.5T (Danfoss) |
1 |
Sight glass |
SGN12S (Danfoss Denmark) |
1 |
Drier filter |
LM8109001-18F1-00 |
1 |
Pressure valve |
High / low (China) |
2 |
Receiver |
LM16F1 (Liming) |
1 |
Control panel |
LM824 (Liming) |
1 |
Relay |
HKE (joint venture) |
1 set |
Hoses |
Copper tube + hoses per bus |
1 set |
6. Installation & Roof Opening
The WL16F1 shares the 16/18 F1 roof-cutting platform — one drawing covers both units. Supplied in PDF/DWG with every order.

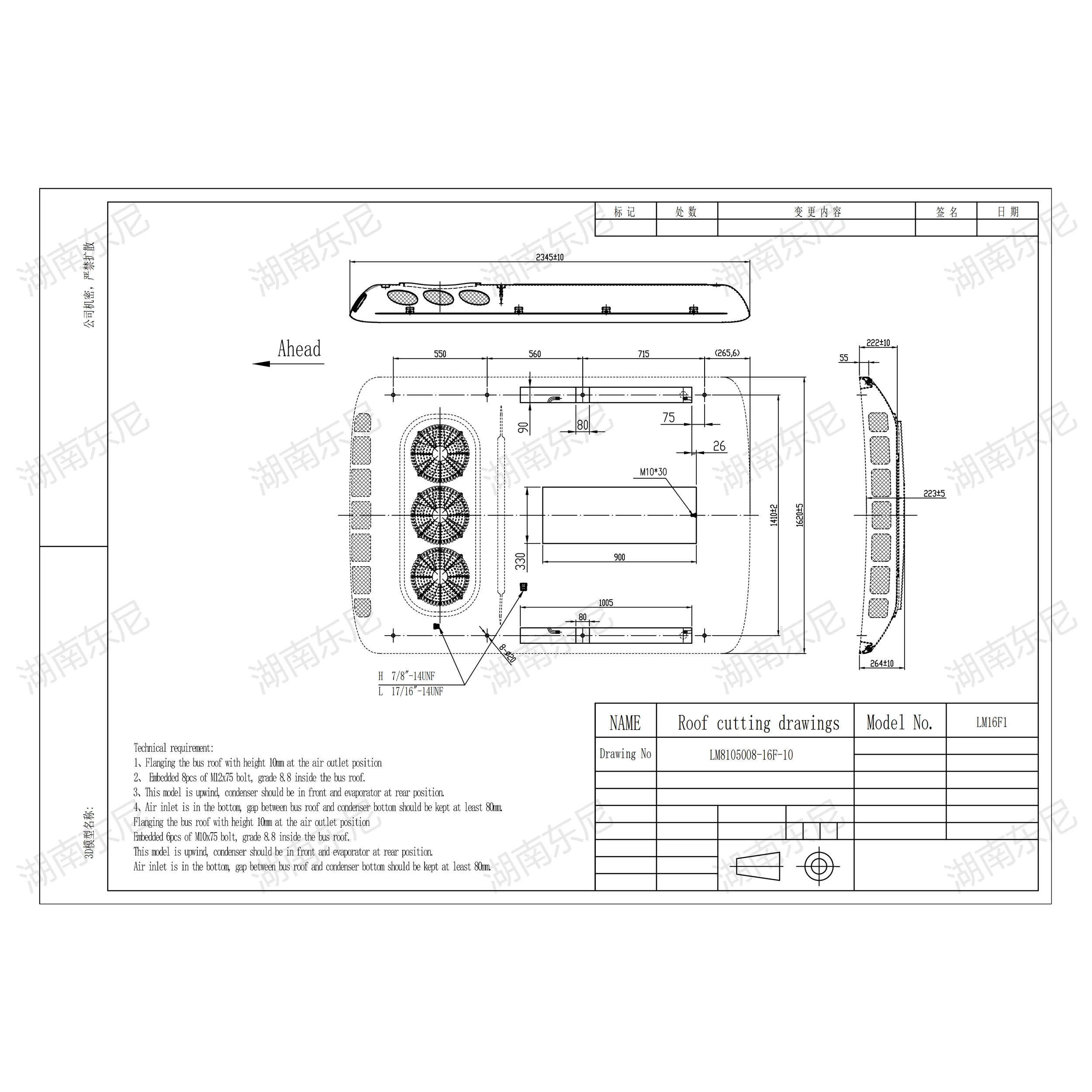

Fig. 5 — Manufacturer's roof-cutting drawing (16/18 F1 platform): cut-outs and mounting pattern (mm)
7. Buyer FAQ
Q1. What is the difference between WL16F1 and WL18F1?
Same roof platform and fan count; the WL18F1 upgrades the compressor (JS38/FKX40-560K) and refrigerant charge for 20 kW peak capacity. Choose by cooling load.
Q2. What buses does the WL16F1 fit?
7.3–8.2 m buses and minibuses — city shuttles, tourist and light passenger fleets.
Q3. Is the compressor included?
Roof assembly or full kit with JS32 compressor, clutch, belt and lines — both options available.
Q4. What refrigerant does it use?
R134a with 2.6 kg factory charge.
Q5. How fast is delivery?
Stock units within 7 days; volume orders per production schedule.
