WL24D Electric Bus Air Conditioner — Integrated Cooling & Heating Efficiency
Efficiency file EF-WL24D | One unit, both seasons: variable-frequency cooling plus integrated PTC heating for 8–8.5 m electric buses.
- Overview
- Recommended Products
1. One Unit, Both Seasons
The WL24D is a full heat-pump-ready electric bus AC for 8.0–8.5 m vehicles: 20/24 kW standard cooling (28 kW max) through a variable-frequency electric compressor, with integrated PTC heating and a reversing four-way valve — so the same roof unit handles summer cooling and winter heating without a separate diesel heater.
2. Official Technical Data
Parameter |
Value |
Cooling capacity |
20 / 24 kW (std) · 28 kW (max) |
Heating |
Integrated PTC + heat-pump |
Applicable vehicle |
8.0 – 8.5 m electric bus |
Input voltage |
DC 300 – 750 V |
Power consumption |
≤ 15 A (380 V) |
Evaporator airflow |
3,600 m³/h |
Condenser airflow |
6,000 m³/h |
3-phase AC, variable frequency |
|
Refrigerant |
R407c |
Dimensions |
2700 × 1896 × 301 mm |
Weight |
≤ 265 kg |
Control |
LM24D (Liming) |

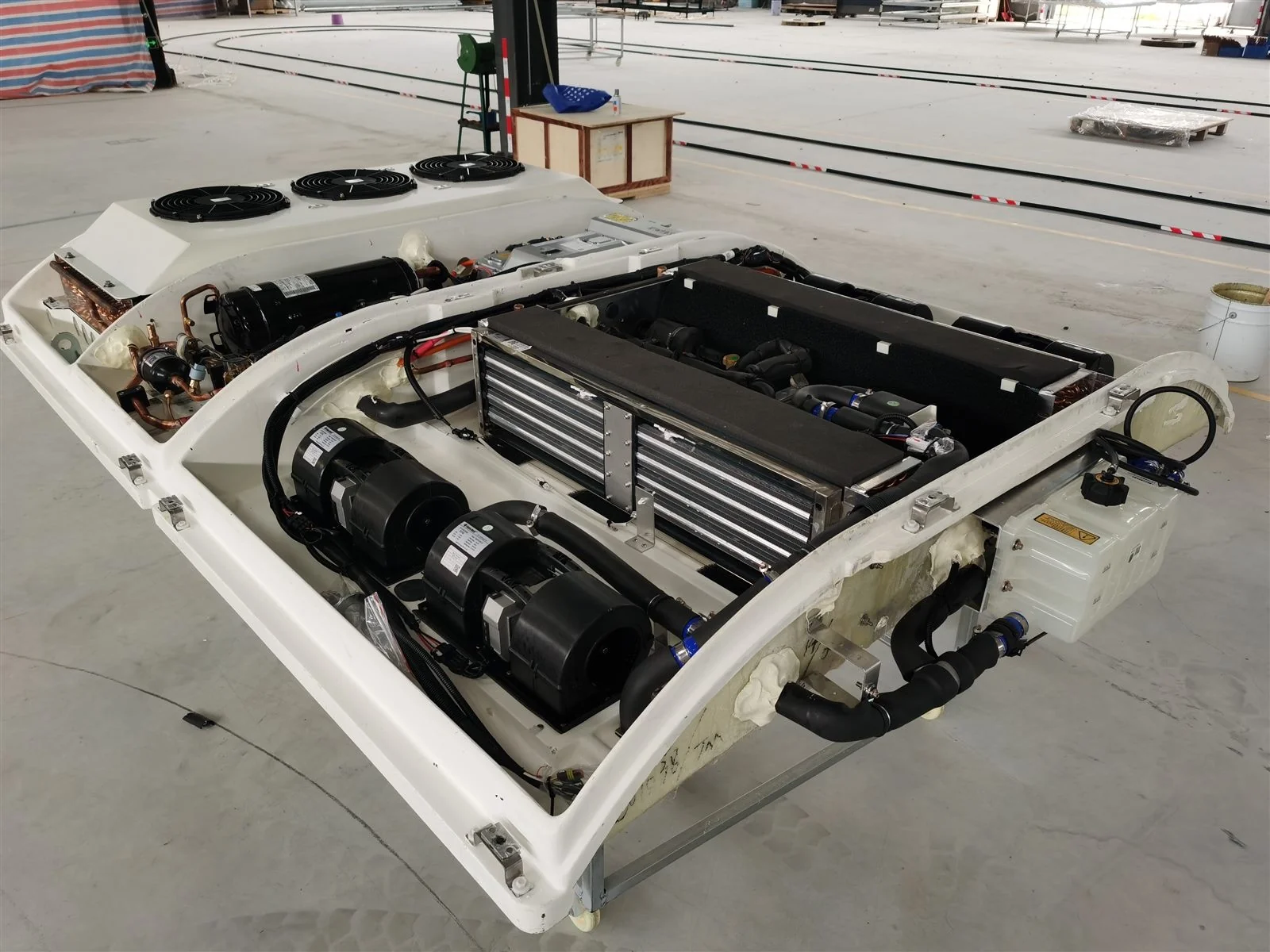

Fig. 1 — Internal view: electric compressor circuit, coils and control system
3. Variable-Frequency Compressor Drive
A three-phase AC variable-frequency compressor (4CW074MA11 / G503DLV-80D2Z) is driven by a CV800-D032 frequency converter — capacity follows cabin load instead of cycling on/off. At partial load the compressor slows down, cutting energy draw from the traction battery and holding steadier cabin temperature.

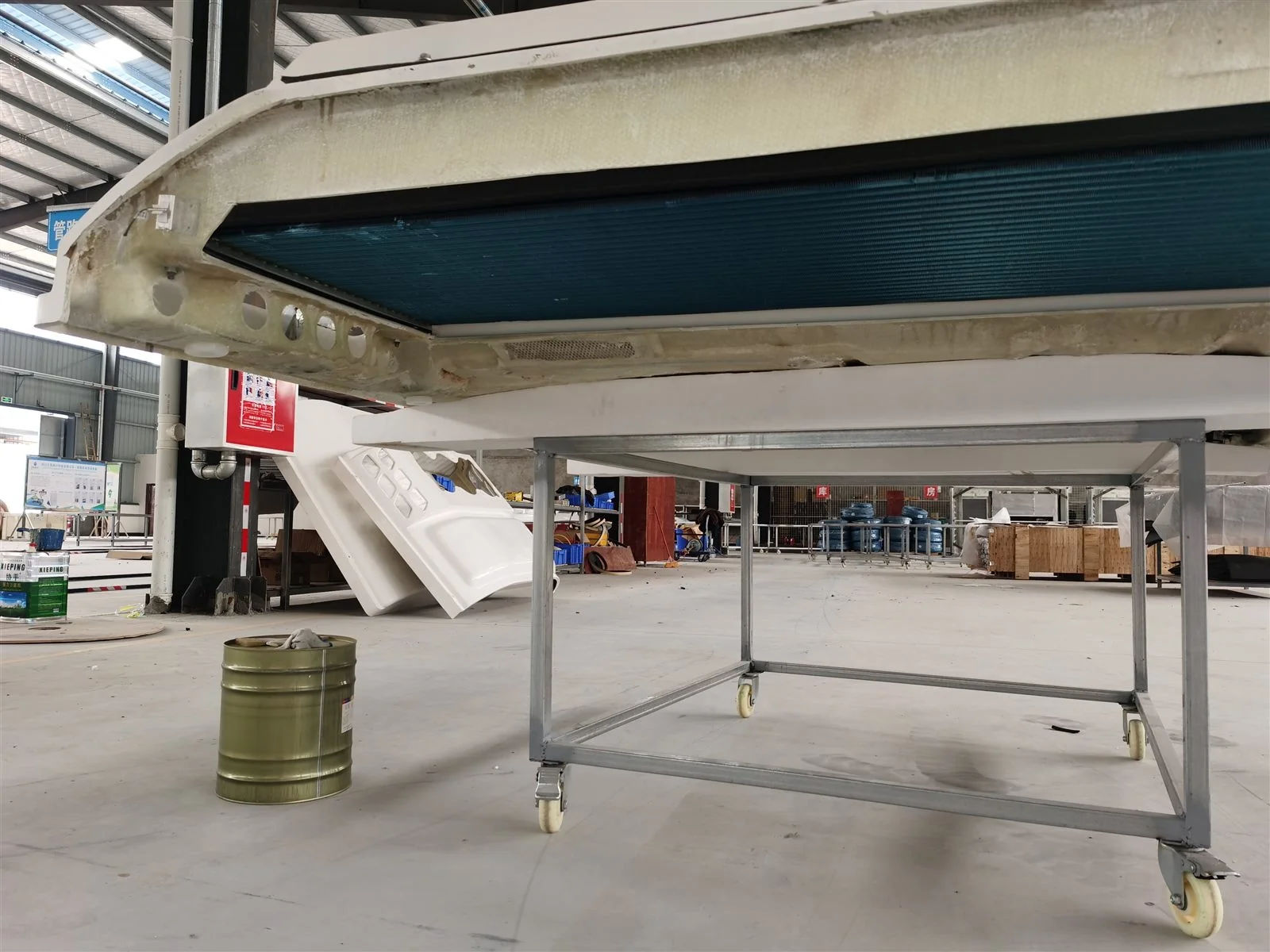

Fig. 2 — Bottom/coil detail: heat-exchanger bank on service cart
4. Integrated Heating & Thermal Components
Component |
Configuration |
Four-way valve |
DC 24V reversing |
Plate heat exchanger |
Danfoss (vertical) |
PTC heater |
Integrated |
Expansion valve |
Electronic (Danfoss) |
Drier filter |
Bidirectional |
Condenser fans |
Brushless × 3 |
Evaporator blowers |
Brushless × 4 |
5. Installation & Roof Opening

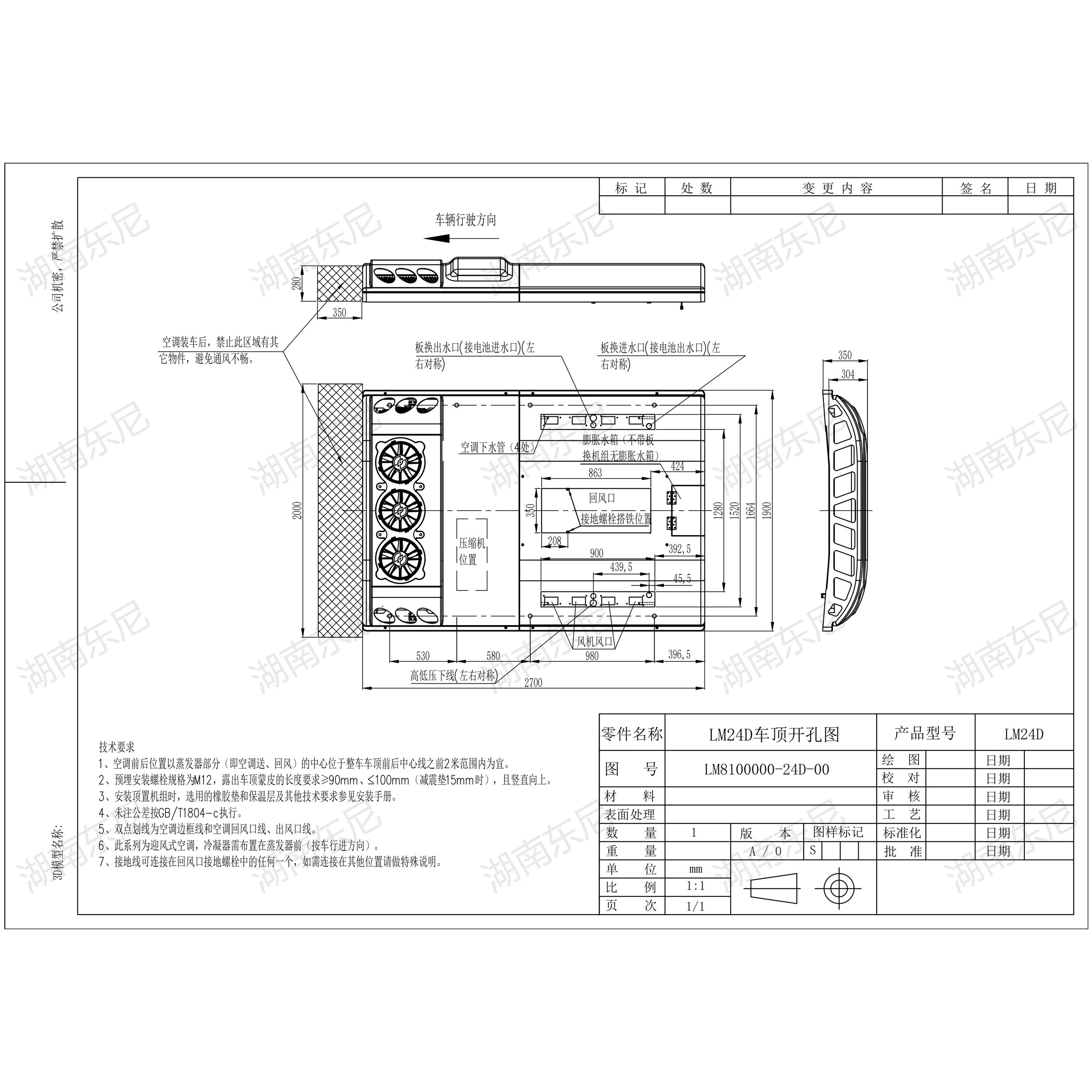

Fig. 3 — Manufacturer's roof-opening drawing: cut-outs and mounting points (mm)

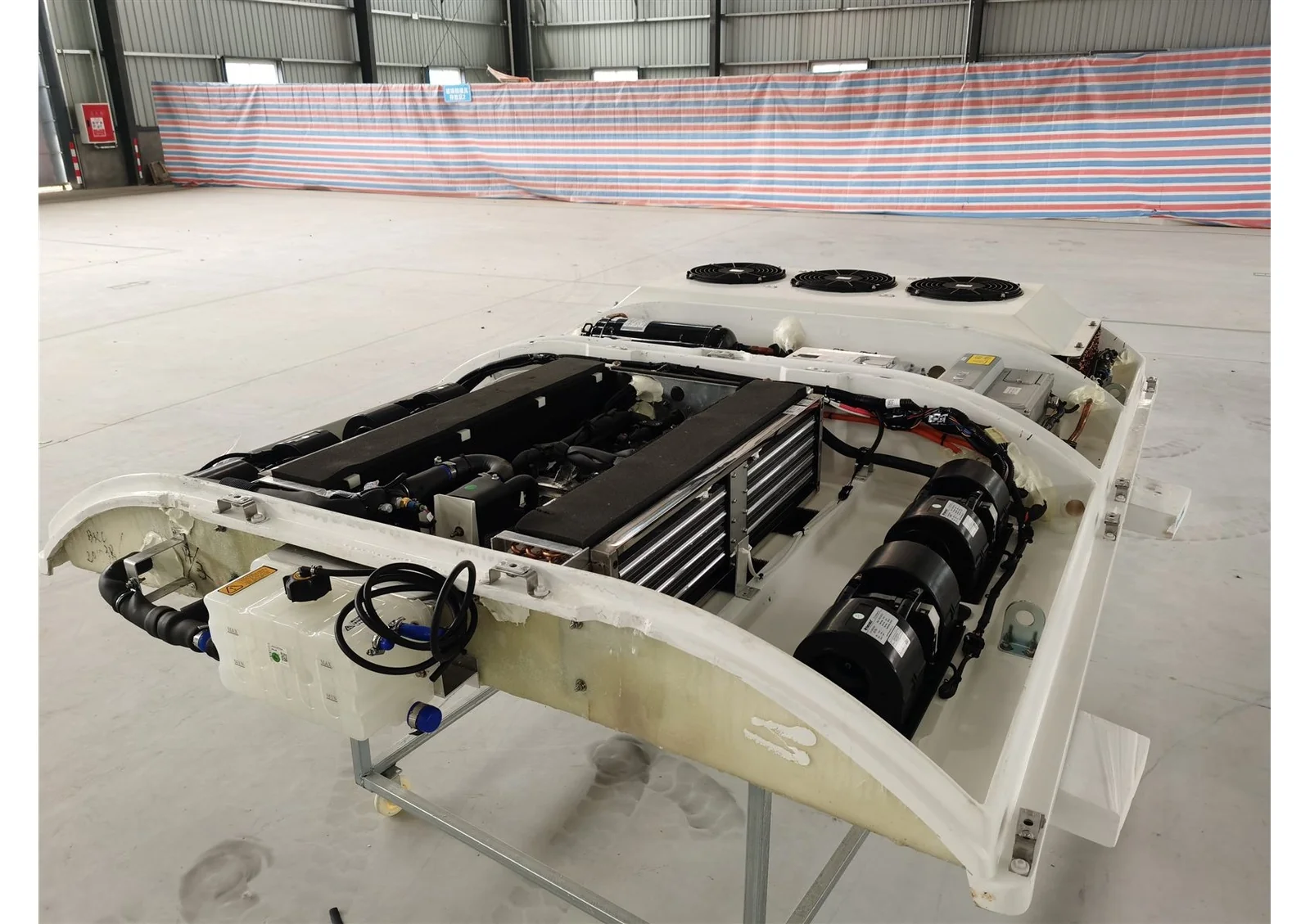

Fig. 4 — Internal component detail
6. Buyer FAQ
Q1. Which buses does the WL24D fit?
8.0–8.5 m electric city buses and shuttles with DC 300–750 V traction systems.
Q2. Does it heat as well as cool?
Yes — integrated PTC heating plus heat-pump mode via reversing four-way valve.
Q3. What is the energy draw?
≤ 15 A at 380 V input at full load; variable-frequency control reduces draw at partial load.
Q4. What refrigerant does it use?
R407c.
Q5. Is the compressor serviceable?
The variable-frequency drive (CV800-D032) and compressor are joint-venture components with spares stocked.
